TCX® (I) 150/250 (300) V
TCX (I) 150/250V 2P0.75
Product ref. 10170061
- Packaging: Drum (100000m)
- Number of pairs: 2
- Number of triples: -
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 10.1 mm
- Maximum outer diameter: 11.7 mm
- Approximate weight: 153 kg/km
TCX (I) 150/250V 4P0.75
Product ref. 10170094
- Packaging: Drum (100000m)
- Number of pairs: 4
- Number of triples: -
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 11.8 mm
- Maximum outer diameter: 13.6 mm
- Approximate weight: 216 kg/km
TCX (I) 150/250V 7P0.75
Product ref. 10170097
- Packaging: Drum (100000m)
- Number of pairs: 7
- Number of triples: -
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 14.3 mm
- Maximum outer diameter: 16.5 mm
- Approximate weight: 353 kg/km
TCX (I) 150/250V 10P0.75
Product ref. 10170099
- Packaging: Drum (100000m)
- Number of pairs: 10
- Number of triples: -
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 16.8 mm
- Maximum outer diameter: 19.4 mm
- Approximate weight: 473 kg/km
TCX (I) 150/250V 14P0.75
Product ref. 10170102
- Packaging: Drum (100000m)
- Number of pairs: 14
- Number of triples: -
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 18.7 mm
- Maximum outer diameter: 21.5 mm
- Approximate weight: 610 kg/km
TCX (I) 150/250V 19P0.75
Product ref. 10183965
- Packaging: Drum (100000m)
- Number of pairs: 19
- Number of triples: -
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 20.8 mm
- Maximum outer diameter: 24.0 mm
- Approximate weight: 768 kg/km
TCX (I) 150/250V 24P0.75
Product ref. 10259830
- Packaging: Drum (100000m)
- Number of pairs: 24
- Number of triples: -
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 23.1 mm
- Maximum outer diameter: 26.5 mm
- Approximate weight: 926 kg/km
TCX (I) 150/250V 2T0.75
Product ref.
- Packaging: Drum (100000m)
- Number of pairs: -
- Number of triples: 2
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 12.0 mm
- Maximum outer diameter: 14.0 mm
- Approximate weight: 230 kg/km
TCX (I) 150/250V 4T0.75
Product ref.
- Packaging: Drum (100000m)
- Number of pairs: -
- Number of triples: 4
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 13.0 mm
- Maximum outer diameter: 15.0 mm
- Approximate weight: 290 kg/km
TCX (I) 150/250V 2P1.5
Product ref. 10170127
- Packaging: Drum (100000m)
- Number of pairs: 2
- Number of triples: -
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 12.2 mm
- Maximum outer diameter: 14.1 mm
- Approximate weight: 222 kg/km
TCX (I) 150/250V 4P1.5
Product ref. 10251178
- Packaging: Drum (100000m)
- Number of pairs: 4
- Number of triples: -
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 14.8 mm
- Maximum outer diameter: 17.0 mm
- Approximate weight: 356 kg/km
TCX (I) 150/250V 7P1.5
Product ref. 10196872
- Packaging: Drum (100000m)
- Number of pairs: 7
- Number of triples: -
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 17.7 mm
- Maximum outer diameter: 20.3 mm
- Approximate weight: 543 kg/km
TCX (I) 150/250V 10P1.5
Product ref. 10282430
- Packaging: Drum (100000m)
- Number of pairs: 10
- Number of triples: -
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 20.6 mm
- Maximum outer diameter: 23.8 mm
- Approximate weight: 729 kg/km
Description
Description
Standards
-
ProductIEC 60228
-
InstallationIEC 60092-350; IEC 60092-360; IEC 60092-376
-
TestIEC 60332-1; IEC 60332-3-22; IEC 60754-1; IEC 60754-2; IEC 61034
Application

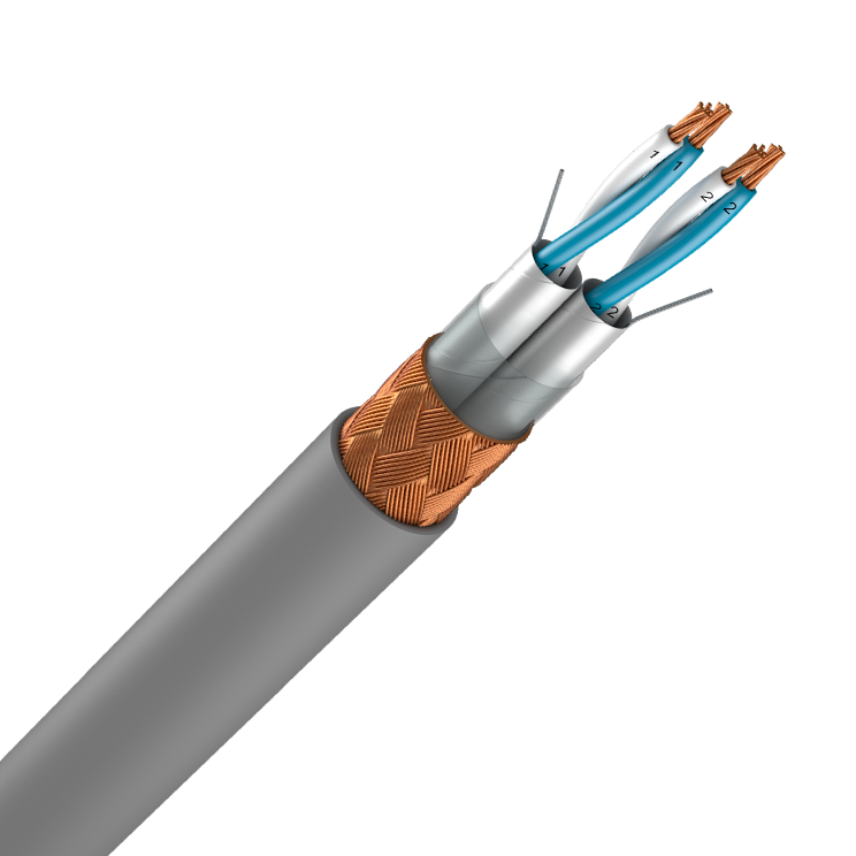

TCX® (I) 150/250 V armoured individually screened twisted pair cables are used for telecommunication and instrumentation purposes. These cables provide strong protection aganist cross-talk in both low and high frequency runs, making them suitable for highly polluted electromagnetic surroundings. TCX®(I) cables are also selected where enhanced mechanical protection is required. Designed with halogen-free fire retardant materials, they provide optimum safety for people and maximal asset protection against all risks of fire.
Design

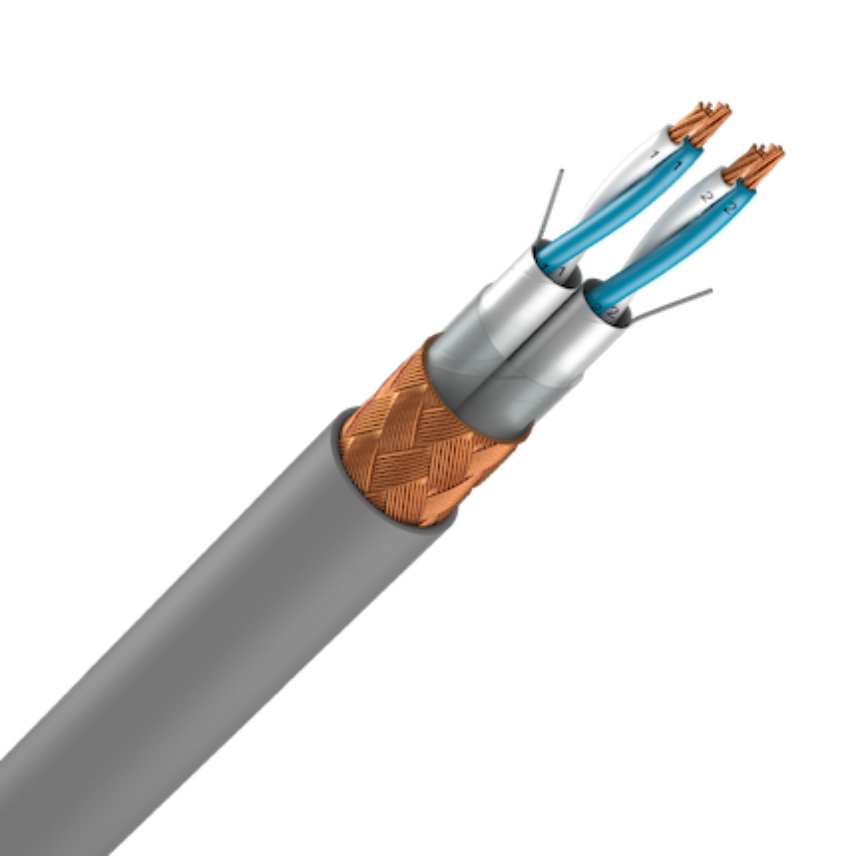

1. Conductor
Stranded bare copper class 2
2. Insulation
XLPE (cross-linked polyethylene)
3. Individual screen
Alu/polyester tape with a tinned copper drain wire
4. Assembling
Polyester tape
5. Armour
Bare copper braid
6. Outer sheath
Polyolefin SHF1
Colour : grey
Example of marking:
LYNXEO 279 TCX (I) Nber of pairs/triads & cross section 150/250V 90C IEC 60092-376 IEC 60332-3-22 Cat. A WW YYYY *CE* Manufacturing n° + metric marking
Core identification
Pair: white / blue with printed pair number
Triad: white / blue / red with printed triad number
