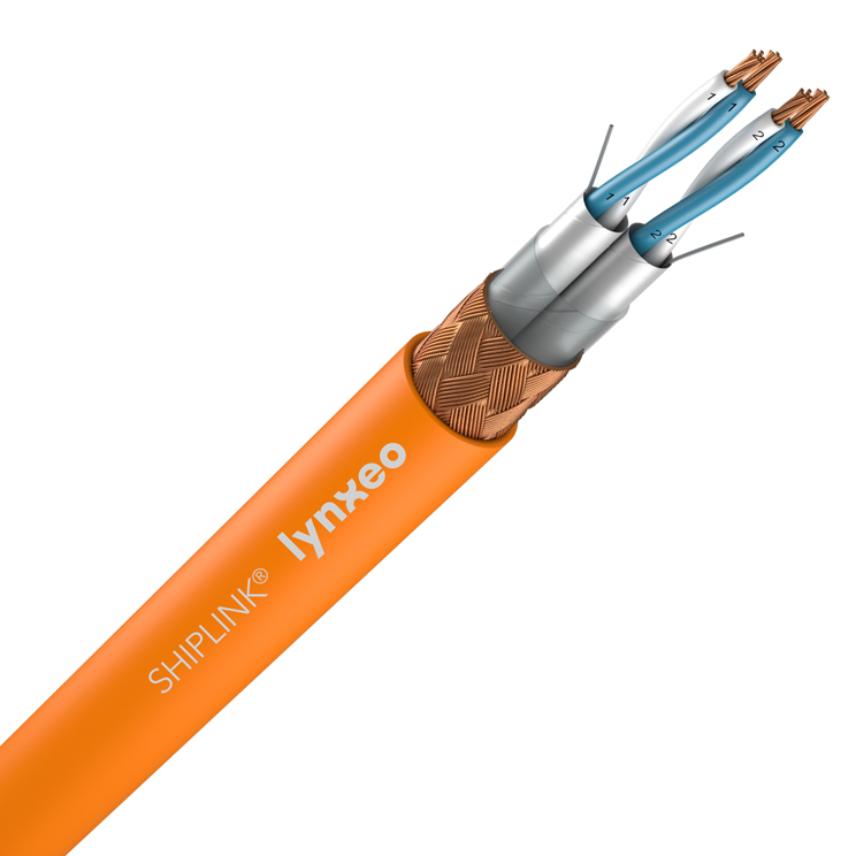

TX® (I) 331 150/250 (300) V
TX® (I) 331 150/250 (300) V
INSTRUMENTATION, CONTROL AND COMMUNICATION CABLES
Read moreTX® ( I ) 331 150/250V 2P0.75
Product ref. 10171346
- Packaging: Drum (100000m)
- Number of pairs: 2
- Number of triples: -
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 11.5 mm
- Maximum outer diameter: 13.3 mm
- Approximate weight: 121 kg/km
TX® ( I ) 331 150/250V 4P0.75
Product ref. 10282801
- Packaging: Drum (100000m)
- Number of pairs: 4
- Number of triples: -
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 13.8 mm
- Maximum outer diameter: 15.8 mm
- Approximate weight: 206 kg/km
TX® ( I ) 331 150/250V 7P0.75
Product ref. 10171349
- Packaging: Drum (100000m)
- Number of pairs: 7
- Number of triples: -
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 14.5 mm
- Maximum outer diameter: 17.5 mm
- Approximate weight: 340 kg/km
TX® ( I ) 331 150/250V 10P0.75
Product ref.
- Packaging: Drum (100000m)
- Number of pairs: 10
- Number of triples: -
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 17.0 mm
- Maximum outer diameter: 21.0 mm
- Approximate weight: 470 kg/km
TX® ( I ) 331 150/250V 14P0.75
Product ref. 10171351
- Packaging: Drum (100000m)
- Number of pairs: 14
- Number of triples: -
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 22.2 mm
- Maximum outer diameter: 25.6 mm
- Approximate weight: 618 kg/km
TX® ( I ) 331 150/250V 19P0.75
Product ref.
- Packaging: Drum (100000m)
- Number of pairs: 19
- Number of triples: -
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 22.5 mm
- Maximum outer diameter: 27.0 mm
- Approximate weight: 830 kg/km
TX® ( I ) 331 150/250V 24P0.75
Product ref.
- Packaging: Drum (100000m)
- Number of pairs: 24
- Number of triples: -
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 25.0 mm
- Maximum outer diameter: 30.0 mm
- Approximate weight: 1060 kg/km
TX® ( I ) 331 150/250V 1T0.75
Product ref.
- Packaging: Drum (100000m)
- Number of pairs: -
- Number of triples: 1
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 7.0 mm
- Maximum outer diameter: 8.6 mm
- Approximate weight: 80 kg/km
TX® ( I ) 331 150/250V 2T0.75
Product ref.
- Packaging: Drum (100000m)
- Number of pairs: -
- Number of triples: 2
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 12.0 mm
- Maximum outer diameter: 14.5 mm
- Approximate weight: 210 kg/km
TX® ( I ) 331 150/250V 4T0.75
Product ref.
- Packaging: Drum (100000m)
- Number of pairs: -
- Number of triples: 4
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 13.0 mm
- Maximum outer diameter: 16.0 mm
- Approximate weight: 270 kg/km
TX® ( I ) 331 150/250V 1P1.5
Product ref. 10171354
- Packaging: Drum (100000m)
- Number of pairs: 1
- Number of triples: -
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 7.8 mm
- Maximum outer diameter: 9.2 mm
- Approximate weight: 100 kg/km
TX® ( I ) 331 150/250V 2P1.5
Product ref. 10171356
- Packaging: Drum (100000m)
- Number of pairs: 2
- Number of triples: -
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 12.0 mm
- Maximum outer diameter: 14.0 mm
- Approximate weight: 220 kg/km
TX® ( I ) 331 150/250V 4P1.5
Product ref.
- Packaging: Drum (100000m)
- Number of pairs: 4
- Number of triples: -
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 14.5 mm
- Maximum outer diameter: 16.5 mm
- Approximate weight: 310 kg/km
TX® ( I ) 331 150/250V 7P1.5
Product ref.
- Packaging: Drum (100000m)
- Number of pairs: 7
- Number of triples: -
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 17.5 mm
- Maximum outer diameter: 20.0 mm
- Approximate weight: 500 kg/km
TX® ( I ) 331 150/250V 10P1.5
Product ref. 10253714
- Packaging: Drum (100000m)
- Number of pairs: 10
- Number of triples: -
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 23.5 mm
- Maximum outer diameter: 27.1 mm
- Approximate weight: 736 kg/km
TX® ( I ) 331 150/250V 14P1.5
Product ref.
- Packaging: Drum (100000m)
- Number of pairs: 14
- Number of triples: -
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 24.0 mm
- Maximum outer diameter: 27.0 mm
- Approximate weight: 950 kg/km
TX® ( I ) 331 150/250V 19P1.5
Product ref.
- Packaging: Drum (100000m)
- Number of pairs: 19
- Number of triples: -
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 28.0 mm
- Maximum outer diameter: 31.0 mm
- Approximate weight: 1260 kg/km
Description
Description
Standards
-
ProductIEC 60228
-
InstallationIEC 60092-350; IEC 60092-360; IEC 60092-376
-
TestIEC 60331-1 or 2; IEC 60332-1; IEC 60332-3-22; IEC 60754-1; IEC 60754-2; IEC 61034
Application
TX® (I) 331 150/250 V fire resistant overall and individually screened twisted pair cables maintain circuit integrity in case of fire by meeting performances requirements from the IEC 60331 series for 180 minutes. These telecommunication and instrumentation cables show a strong protection aganist cross-talk and result into a good compromise between TX® (C) 331 and TCX® (C) 331 cables against external electromegnetic disturbances. Designed with halogen-free fire retardant materials, they provide optimum safety for people and maximal asset protection against all risks of fire.

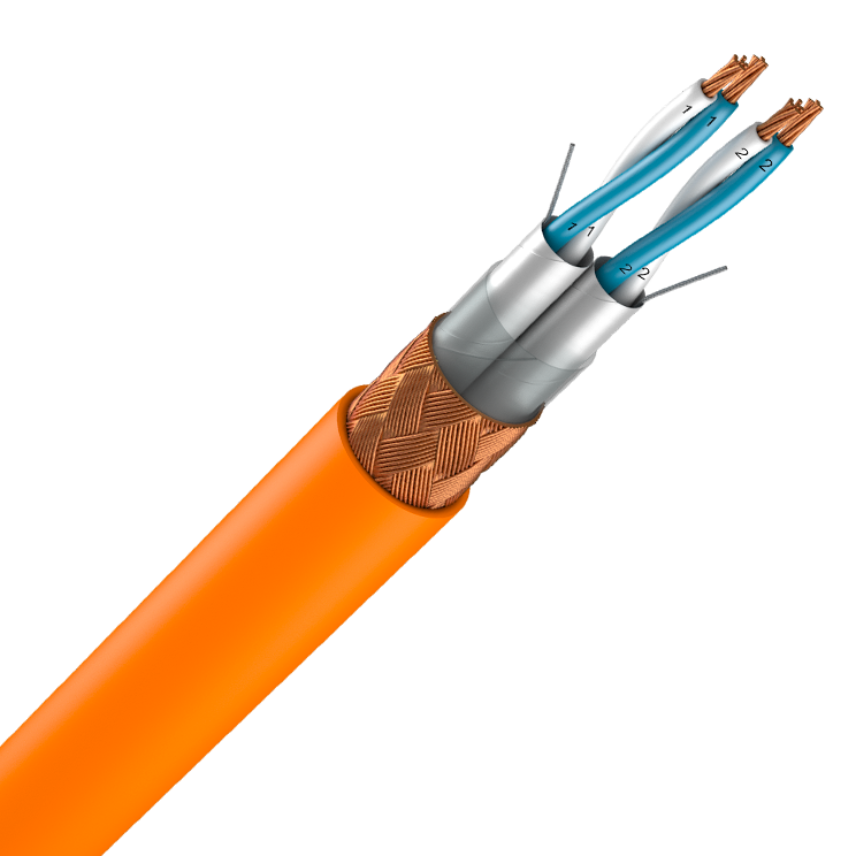

Design
1. Conductor
Stranded bare copper class 2
2. Insulation
Mica tape + XLPE (cross-linked polyethylene)
3. Individual screen
Alu/polyester tape with a tinned copper drain wire
4. Outer sheath
Polyolefin SHF1
Colour: orange
Example of marking:
LYNXEO 279 TX (I) 331 150/250 V "n x 2 or 3 x s" mm² 90 °C - IEC 60092-376 IEC 60332-3-22 Cat. A IEC 60331-1/2 ww/yy - CE + metric marking
Core Identification
Pair: white / blue with printed with pair number
Triad: white / blue / red with printed with triad number
