MBBN 3320 YH +++
MBBN 3320 YH +++

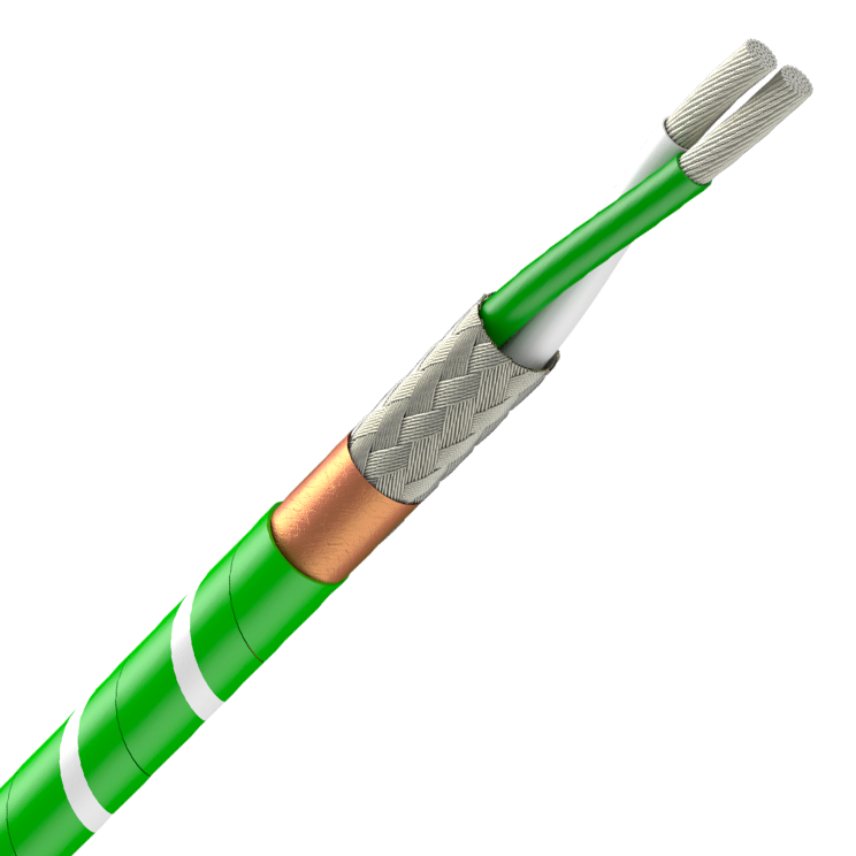

Cable electric, Nickel chromium / Nickel aluminium Jacketed, Shielded Twisted pair
Read moreDescription
Description
Standards
-
ProductISO 8056; prEN 4049-004
-
NationalMBBN 3320 YH
Construction
- CONDUCTOR 1
Stranded conductor Nickel Chromium
PTFE/Polyimide/PTFE tapes
- CONDUCTOR 2
Stranded conductor Nickel Aluminium
PTFE/Polyimide/PTFE tapes
- SCREEN
Nickel plated Copper Braid
- JACKET
Polyimide tape
PTFE tape
Other characteristics
Resistant to fungus and to fluids used on board.
EMF : 10.56 ± 0.12 mV at +260°C
Characteristics
Characteristics
Electrical characteristics
Electrical characteristics
Operating voltage
600 V
Usage characteristics
Usage characteristics
Operating temperature, range
-55 ... 260 °C
Oil resistance
Very good resistance to aircraft fluids
Resources
Resources
Documentation
Selling & delivery Information
Identification
Conductor color :
- Nickel chromium conductor : White
- Nickel aluminium conductor : Green
Jacket color:
- Green (size 006)
- Green with narrow white stripe (size 004)
Marking in black
MBBN 3320 YH +++ FR F **
with :
+++ = Code for nominal section
FR = Country of origin (FR = France)
F = Manufacturer (F= Nexans)
** = Year of manufacturing (ie. 13 = 2013)
