ABS 1503 KD 24
ABS 1503 KD 24
High speed data transmission - Ethernet networks - 100 Mbit/s and in-flight entertainment application.

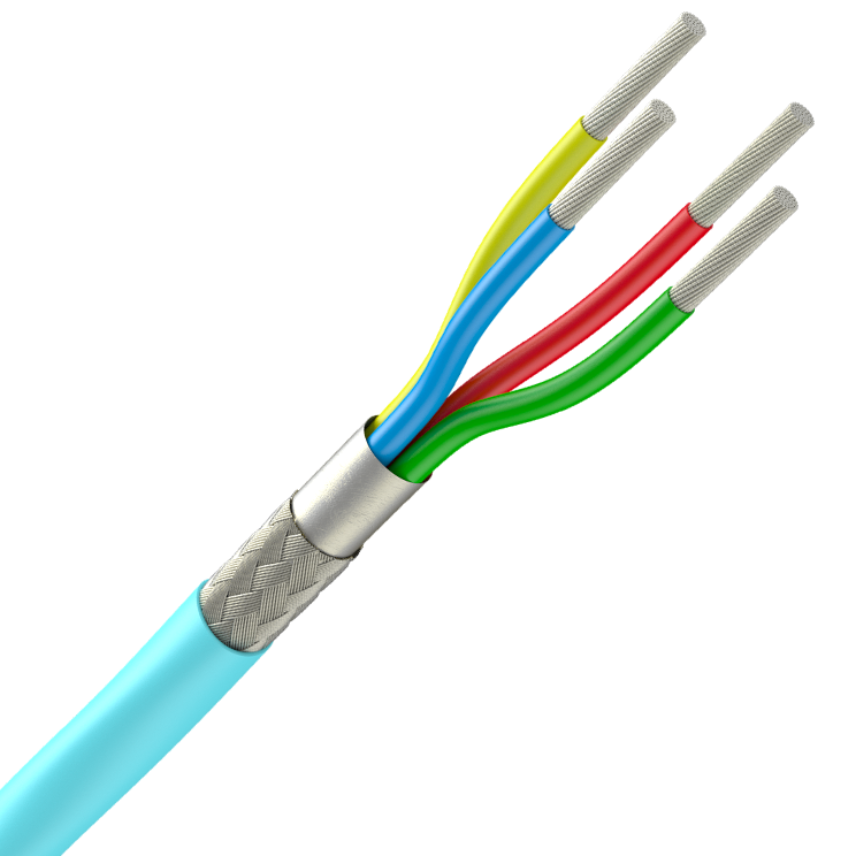

100 Ohms, AWG 24 - Shielded Quad
Description
Description
CORE
AWG 24, 19 x 0.13 mm
Silver copper stranded
FEP insulated
ASSEMBLY
4 cores + 1 FEP filler
With wrapping tape
SHIELD
0.10 mm Silver Copper Braid
JACKET
Clear Blue FEP for UV
laser marking
Electrical and high frequency performances
| Loop resistance at 20°C | : 19.2 Ω/100m max. |
| Insulation resistance at 20°C | : 1500 MΩ.Km |
| Impedance from 1 to 100 MHz | : 100 ± 15 Ω |
| Velocity of propagation |
: ≥ 70 % |
|
Next, from 1 to 100 MHz |
: > 68 - 15 x log (F) dB |
| Nominal attenuation values |
: 2.1 dB/100m at 1 MHz |
| : 4.1 dB/100m at 4 MHz | |
| : 6.5 dB/100m at 10 MHz | |
| : 8.2 dB/100m at 16 MHz | |
| : 9.3 dB/100m at 20 MHz | |
| : 11.7 dB/100m at 31.25 MHz | |
| : 17 dB/100m at 62.5 MHz | |
| : 22 dB/100m at 100 MHz |
Identification
| Colour of cores | : Blue + Red + Yellow + Green |
| Inkjet marking pitch length | : ≈ 300 mm |
| Pitch length between the two next marking | : ≈ 150 mm |
| Marking text | : "AB KD 24 FR F **" |
| With | (**) = Year of manufacturing (ie. 14 = 2014) |
Characteristics
Characteristics
Usage characteristics
Usage characteristics
Operating temperature, range
-55 ... 125 °C
Storage temperature, range
- °C
Flame retardant
FAR/JAR part 25 sec 25.869 (a)(4) Appendix F part 1 (3)
Oil resistance
Very good resistance to aircraft fluids
