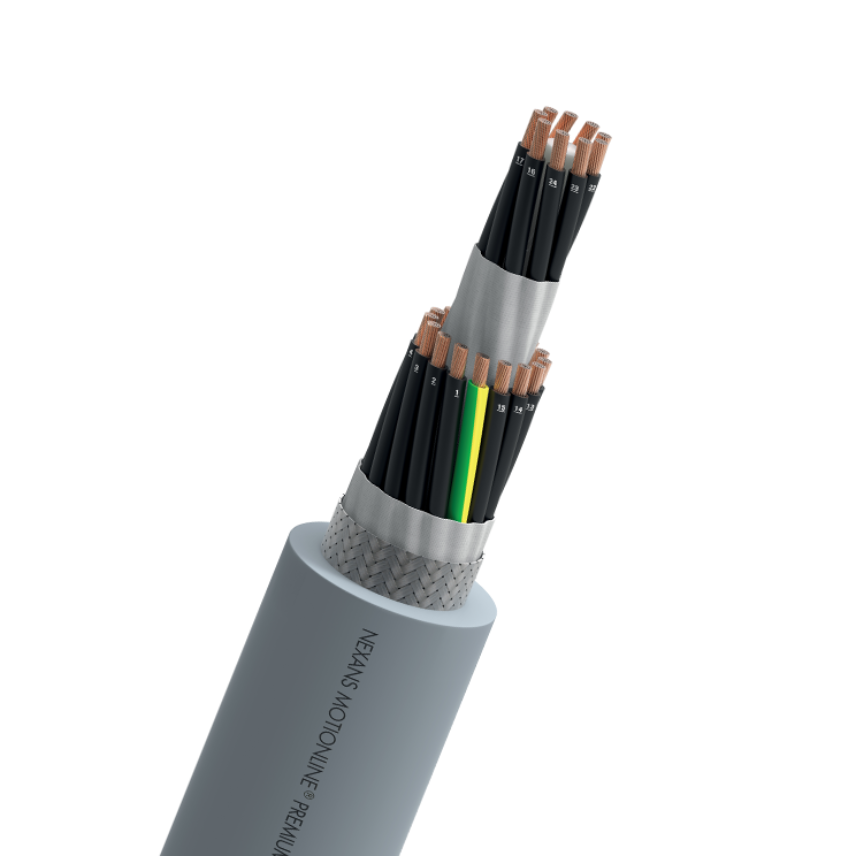

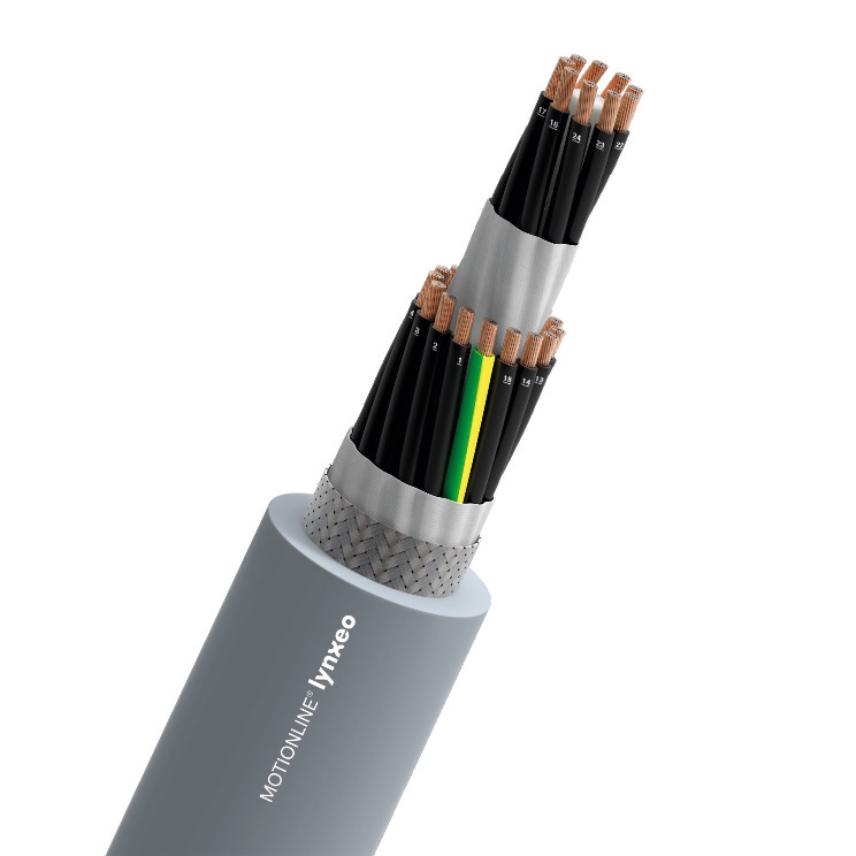

MOVEPOWER C - 0,5 mm² to 4 mm² / PUR / shielded
MOVEPOWER C - 0,5 mm² to 4 mm² / PUR / shielded
TPU-control cables for extremely dynamic and track chain application, rated voltage 1000V, PUR jacket, shielded, oil resistant, halogen free, UL and CSA approved
Read moreMOVEPOWER C 2 x 0,5 mm²
Product ref. 10577344 - Country ref. Q105002V200
- Packaging: Drum (1000m)
- Construction type: (2x0,50)C
- Number of cores: 2
- Conductor cross-section: 0.5 mm²
- Outer Diameter: 5.6 mm
- Copper content: 20 kg/km
- Approximate weight: 42 kg/km
- Rated Voltage Uo/U: 1000 V
MOVEPOWER C 3 x 0,5 mm²
Product ref. - Country ref. Q105003V200
- Packaging: Drum (1000m)
- Construction type: (3G0,50)C
- Number of cores: 3
- Conductor cross-section: 0.5 mm²
- Outer Diameter: 5.9 mm
- Copper content: 25.8 kg/km
- Approximate weight: 44 kg/km
- Rated Voltage Uo/U: 1000 V
MOVEPOWER C 4 x 0,5 mm²
Product ref. - Country ref. Q105004V200
- Packaging: Drum (1000m)
- Construction type: (4G0,50)C
- Number of cores: 4
- Conductor cross-section: 0.5 mm²
- Outer Diameter: 6.3 mm
- Copper content: 31.9 kg/km
- Approximate weight: 53 kg/km
- Rated Voltage Uo/U: 1000 V
MOVEPOWER C 5 x 0,5 mm²
Product ref. 10554674 - Country ref. Q105005V200
- Packaging: Cut to length (m)
- Construction type: (5G0,50)C
- Number of cores: 5
- Conductor cross-section: 0.5 mm²
- Outer Diameter: 6.7 mm
- Copper content: 38.3 kg/km
- Approximate weight: 61 kg/km
- Rated Voltage Uo/U: 1000 V
MOVEPOWER C 7 x 0,5 mm²
Product ref. - Country ref. Q105007V200
- Packaging: Drum (1000m)
- Construction type: (7G0,50)C
- Number of cores: 7
- Conductor cross-section: 0.5 mm²
- Outer Diameter: 7.6 mm
- Copper content: 50.9 kg/km
- Approximate weight: 83 kg/km
- Rated Voltage Uo/U: 1000 V
MOVEPOWER C 12 x 0,5 mm²
Product ref. 10554747 - Country ref. Q105012V200
- Packaging: Cut to length (m)
- Construction type: (12G0,50)C
- Number of cores: 12
- Conductor cross-section: 0.5 mm²
- Outer Diameter: 9.6 mm
- Copper content: 85.7 kg/km
- Approximate weight: 127 kg/km
- Rated Voltage Uo/U: 1000 V
MOVEPOWER C 18 x 0,5 mm²
Product ref. 10555832 - Country ref. Q105018V200
- Packaging: Cut to length (m)
- Construction type: (18G0,50)C
- Number of cores: 18
- Conductor cross-section: 0.5 mm²
- Outer Diameter: 10.9 mm
- Copper content: 120.6 kg/km
- Approximate weight: 175 kg/km
- Rated Voltage Uo/U: 1000 V
MOVEPOWER C 20 x 0,5 mm²
Product ref. - Country ref. Q105020V200
- Packaging: Drum (1000m)
- Construction type: (20G0,50)C
- Number of cores: 20
- Conductor cross-section: 0.5 mm²
- Outer Diameter: 12.1 mm
- Copper content: 132.7 kg/km
- Approximate weight: 208 kg/km
- Rated Voltage Uo/U: 1000 V
MOVEPOWER C 24 x 0,5 mm²
Product ref. - Country ref. Q105024V200
- Packaging: Drum (1000m)
- Construction type: (24G0,50)C
- Number of cores: 24
- Conductor cross-section: 0.5 mm²
- Outer Diameter: 13.2 mm
- Copper content: 161.7 kg/km
- Approximate weight: 240 kg/km
- Rated Voltage Uo/U: 1000 V
MOVEPOWER C 25 x 0,5 mm²
Product ref. - Country ref. Q105025V200
- Packaging: Drum (1000m)
- Construction type: (25G0,50)C
- Number of cores: 25
- Conductor cross-section: 0.5 mm²
- Outer Diameter: 13.7 mm
- Copper content: 168.6 kg/km
- Approximate weight: 262 kg/km
- Rated Voltage Uo/U: 1000 V
MOVEPOWER C 2 x 0,75 mm²
Product ref. - Country ref. Q107502V200
- Packaging: Drum (1000m)
- Construction type: (2x0,75)C
- Number of cores: 2
- Conductor cross-section: 0.75 mm²
- Outer Diameter: 6 mm
- Copper content: 26.2 kg/km
- Approximate weight: 51 kg/km
- Rated Voltage Uo/U: 1000 V
MOVEPOWER C 3 x 0,75 mm²
Product ref. 10573699 - Country ref. Q107503V200
- Packaging: Drum (1000m)
- Construction type: (3G0,75)C
- Number of cores: 3
- Conductor cross-section: 0.75 mm²
- Outer Diameter: 6.3 mm
- Copper content: 34.5 kg/km
- Approximate weight: 54 kg/km
- Rated Voltage Uo/U: 1000 V
MOVEPOWER C 4 x 0,75 mm²
Product ref. 10573536 - Country ref. Q107504V200
- Packaging: Drum (1000m)
- Construction type: (4G0,75)C
- Number of cores: 4
- Conductor cross-section: 0.75 mm²
- Outer Diameter: 6.7 mm
- Copper content: 43.4 kg/km
- Approximate weight: 65 kg/km
- Rated Voltage Uo/U: 1000 V
MOVEPOWER C 5 x 0,75 mm²
Product ref. 10577025 - Country ref. Q107505V200
- Packaging: Drum (1000m)
- Construction type: (5G0,75)C
- Number of cores: 5
- Conductor cross-section: 0.75 mm²
- Outer Diameter: 7.3 mm
- Copper content: 52.4 kg/km
- Approximate weight: 77 kg/km
- Rated Voltage Uo/U: 1000 V
MOVEPOWER C 7 x 0,75 mm²
Product ref. 10554715 - Country ref. Q107507V200
- Packaging: Cut to length (m)
- Construction type: (7G0,75)C
- Number of cores: 7
- Conductor cross-section: 0.75 mm²
- Outer Diameter: 8.6 mm
- Copper content: 74.5 kg/km
- Approximate weight: 113 kg/km
- Rated Voltage Uo/U: 1000 V
MOVEPOWER C 8 x 0,75 mm²
Product ref. 10555855 - Country ref. Q107508V200
- Packaging: Cut to length (m)
- Construction type: (8G0,75)C
- Number of cores: 8
- Conductor cross-section: 0.75 mm²
- Outer Diameter: 9.1 mm
- Copper content: 84 kg/km
- Approximate weight: 134 kg/km
- Rated Voltage Uo/U: 1000 V
MOVEPOWER C 12 x 0,75 mm²
Product ref. Q107512V200
- Packaging: Drum (1000m)
- Construction type: (12G0,75)C
- Number of cores: 12
- Conductor cross-section: 0.75 mm²
- Outer Diameter: 10.4 mm
- Copper content: 118.7 kg/km
- Approximate weight: 162 kg/km
- Rated Voltage Uo/U: 1000 V
MOVEPOWER C 18 x 0,75 mm²
Product ref. - Country ref. Q107518V200
- Packaging: Drum (1000m)
- Construction type: (18G0,75)C
- Number of cores: 18
- Conductor cross-section: 0.75 mm²
- Outer Diameter: 12.5 mm
- Copper content: 169.2 kg/km
- Approximate weight: 242 kg/km
- Rated Voltage Uo/U: 1000 V
MOVEPOWER C 20 x 0,75 mm²
Product ref. - Country ref. Q107520V200
- Packaging: Drum (1000m)
- Construction type: (20G0,75)C
- Number of cores: 20
- Conductor cross-section: 0.75 mm²
- Outer Diameter: 13.3 mm
- Copper content: 192 kg/km
- Approximate weight: 273 kg/km
- Rated Voltage Uo/U: 1000 V
MOVEPOWER C 24 x 0,75 mm²
Product ref. - Country ref. Q107524V200
- Packaging: Drum (1000m)
- Construction type: (24G0,75)C
- Number of cores: 24
- Conductor cross-section: 0.75 mm²
- Outer Diameter: 14.4 mm
- Copper content: 226.7 kg/km
- Approximate weight: 310 kg/km
- Rated Voltage Uo/U: 1000 V
MOVEPOWER C 25 x 0,75 mm²
Product ref. - Country ref. Q107525V200
- Packaging: Drum (1000m)
- Construction type: (25G0,75)C
- Number of cores: 25
- Conductor cross-section: 0.75 mm²
- Outer Diameter: 14.9 mm
- Copper content: 236.3 kg/km
- Approximate weight: 338 kg/km
- Rated Voltage Uo/U: 1000 V
MOVEPOWER C 2 x 1,0 mm²
Product ref. - Country ref. Q110002V200
- Packaging: Drum (1000m)
- Construction type: (2x1)C
- Number of cores: 2
- Conductor cross-section: 1 mm²
- Outer Diameter: 6.4 mm
- Copper content: 32.4 kg/km
- Approximate weight: 60 kg/km
- Rated Voltage Uo/U: 1000 V
MOVEPOWER C 3 x 1,0 mm²
Product ref. 10555880 - Country ref. Q110003V200
- Packaging: Cut to length (m)
- Construction type: (3G1)C
- Number of cores: 3
- Conductor cross-section: 1 mm²
- Outer Diameter: 6.7 mm
- Copper content: 43.3 kg/km
- Approximate weight: 64 kg/km
- Rated Voltage Uo/U: 1000 V
MOVEPOWER C 4 x 1,0 mm²
Product ref. 10573690 - Country ref. Q110004V200
- Packaging: Drum (1000m)
- Construction type: (4G1)C
- Number of cores: 4
- Conductor cross-section: 1 mm²
- Outer Diameter: 7.2 mm
- Copper content: 54.8 kg/km
- Approximate weight: 78 kg/km
- Rated Voltage Uo/U: 1000 V
MOVEPOWER C 5 x 1,0 mm²
Product ref. 10573538 - Country ref. Q110005V200
- Packaging: Drum (1000m)
- Construction type: (5G1)C
- Number of cores: 5
- Conductor cross-section: 1 mm²
- Outer Diameter: 7.8 mm
- Copper content: 66.5 kg/km
- Approximate weight: 93 kg/km
- Rated Voltage Uo/U: 1000 V
MOVEPOWER C 7 x 1,0 mm²
Product ref. 10573539 - Country ref. Q110007V200
- Packaging: Drum (1000m)
- Construction type: (7G1)C
- Number of cores: 7
- Conductor cross-section: 1 mm²
- Outer Diameter: 9.2 mm
- Copper content: 94.4 kg/km
- Approximate weight: 137 kg/km
- Rated Voltage Uo/U: 1000 V
MOVEPOWER C 12 x 1,0 mm²
Product ref. 10555068 - Country ref. Q110012V200
- Packaging: Cut to length (m)
- Construction type: (12G1)C
- Number of cores: 12
- Conductor cross-section: 1 mm²
- Outer Diameter: 11.8 mm
- Copper content: 151.7 kg/km
- Approximate weight: 213 kg/km
- Rated Voltage Uo/U: 1000 V
MOVEPOWER C 18 x 1,0 mm²
Product ref. - Country ref. Q110018V200
- Packaging: Drum (1000m)
- Construction type: (18G1)C
- Number of cores: 18
- Conductor cross-section: 1 mm²
- Outer Diameter: 13.6 mm
- Copper content: 223.4 kg/km
- Approximate weight: 302 kg/km
- Rated Voltage Uo/U: 1000 V
MOVEPOWER C 20 x 1,0 mm²
Product ref. - Country ref. Q110020V200
- Packaging: Drum (1000m)
- Construction type: (20G1)C
- Number of cores: 20
- Conductor cross-section: 1 mm²
- Outer Diameter: 14.3 mm
- Copper content: 246.5 kg/km
- Approximate weight: 335 kg/km
- Rated Voltage Uo/U: 1000 V
MOVEPOWER C 24 x 1,0 mm²
Product ref. - Country ref. Q110024V200
- Packaging: Drum (1000m)
- Construction type: (24G1)C
- Number of cores: 24
- Conductor cross-section: 1 mm²
- Outer Diameter: 15.6 mm
- Copper content: 291.7 kg/km
- Approximate weight: 381 kg/km
- Rated Voltage Uo/U: 1000 V
MOVEPOWER C 25 x 1,0 mm²
Product ref. 10555076 - Country ref. Q110025V200
- Packaging: Cut to length (m)
- Construction type: (25G1)C
- Number of cores: 25
- Conductor cross-section: 1 mm²
- Outer Diameter: 16.1 mm
- Copper content: 303.9 kg/km
- Approximate weight: 415 kg/km
- Rated Voltage Uo/U: 1000 V
MOVEPOWER C 2 x 1,5 mm²
Product ref. - Country ref. Q115002V200
- Packaging: Drum (1000m)
- Construction type: (2x1,5)C
- Number of cores: 2
- Conductor cross-section: 1.5 mm²
- Outer Diameter: 7 mm
- Copper content: 44.1 kg/km
- Approximate weight: 76 kg/km
- Rated Voltage Uo/U: 1000 V
MOVEPOWER C 3 x 1,5 mm²
Product ref. 10573540 - Country ref. Q115003V200
- Packaging: Drum (1000m)
- Construction type: (3G1,5)C
- Number of cores: 3
- Conductor cross-section: 1.5 mm²
- Outer Diameter: 7.4 mm
- Copper content: 60.2 kg/km
- Approximate weight: 83 kg/km
- Rated Voltage Uo/U: 1000 V
MOVEPOWER C 4 x 1,5 mm²
Product ref. 10555875 - Country ref. Q115004V200
- Packaging: Cut to length (m)
- Construction type: (4G1,5)C
- Number of cores: 4
- Conductor cross-section: 1.5 mm²
- Outer Diameter: 7.9 mm
- Copper content: 76.9 kg/km
- Approximate weight: 102 kg/km
- Rated Voltage Uo/U: 1000 V
MOVEPOWER C 5 x 1,5 mm²
Product ref. 10573541 - Country ref. Q115005V200
- Packaging: Drum (1000m)
- Construction type: (5G1,5)C
- Number of cores: 5
- Conductor cross-section: 1.5 mm²
- Outer Diameter: 8.9 mm
- Copper content: 98.3 kg/km
- Approximate weight: 130 kg/km
- Rated Voltage Uo/U: 1000 V
MOVEPOWER C 7 x 1,5 mm²
Product ref. 10577154 - Country ref. Q115007V200
- Packaging: Drum (1000m)
- Construction type: (7G1,5)C
- Number of cores: 7
- Conductor cross-section: 1.5 mm²
- Outer Diameter: 10.2 mm
- Copper content: 132.9 kg/km
- Approximate weight: 180 kg/km
- Rated Voltage Uo/U: 1000 V
MOVEPOWER C 12 x 1,5 mm²
Product ref. 10555123 - Country ref. Q115012V200
- Packaging: Cut to length (m)
- Construction type: (12G1,5)C
- Number of cores: 12
- Conductor cross-section: 1.5 mm²
- Outer Diameter: 13.2 mm
- Copper content: 221.6 kg/km
- Approximate weight: 287 kg/km
- Rated Voltage Uo/U: 1000 V
MOVEPOWER C 2 x 2,5 mm²
Product ref. - Country ref. Q125002V200
- Packaging: Drum (1000m)
- Construction type: (2x2,5)C
- Number of cores: 2
- Conductor cross-section: 2.5 mm²
- Outer Diameter: 8.1 mm
- Copper content: 71 kg/km
- Approximate weight: 109 kg/km
- Rated Voltage Uo/U: 1000 V
MOVEPOWER C 3 x 2,5 mm²
Product ref. 10573446 - Country ref. Q125003V200
- Packaging: Drum (1000m)
- Construction type: (3G2,5)C
- Number of cores: 3
- Conductor cross-section: 2.5 mm²
- Outer Diameter: 8.8 mm
- Copper content: 98 kg/km
- Approximate weight: 124 kg/km
- Rated Voltage Uo/U: 1000 V
MOVEPOWER C 4 x 2,5 mm²
Product ref. 10555093 - Country ref. Q125004V200
- Packaging: Cut to length (m)
- Construction type: (4G2,5)C
- Number of cores: 4
- Conductor cross-section: 2.5 mm²
- Outer Diameter: 9.5 mm
- Copper content: 125 kg/km
- Approximate weight: 153 kg/km
- Rated Voltage Uo/U: 1000 V
MOVEPOWER C 5 x 2,5 mm²
Product ref. 10573447 - Country ref. Q125005V200
- Packaging: Drum (1000m)
- Construction type: (5G2,5)C
- Number of cores: 5
- Conductor cross-section: 2.5 mm²
- Outer Diameter: 10.3 mm
- Copper content: 153 kg/km
- Approximate weight: 183 kg/km
- Rated Voltage Uo/U: 1000 V
MOVEPOWER C 7 x 2,5 mm²
Product ref. 10573448 - Country ref. Q125007V200
- Packaging: Drum (1000m)
- Construction type: (7G2,5)C
- Number of cores: 7
- Conductor cross-section: 2.5 mm²
- Outer Diameter: 12.4 mm
- Copper content: 209 kg/km
- Approximate weight: 272 kg/km
- Rated Voltage Uo/U: 1000 V
MOVEPOWER C 12 x 2,5 mm²
Product ref. - Country ref. Q125012V200
- Packaging: Drum (1000m)
- Construction type: (12G2,5)C
- Number of cores: 12
- Conductor cross-section: 2.5 mm²
- Outer Diameter: 15.2 mm
- Copper content: 390 kg/km
- Approximate weight: 410 kg/km
- Rated Voltage Uo/U: 600 V
MOVEPOWER C 3 x 4,0 mm²
Product ref.
- Packaging: Drum (1000m)
- Construction type: (3G4)C
- Number of cores: 3
- Conductor cross-section: 4 mm²
- Outer Diameter: 11.1 mm
- Copper content: 151 kg/km
- Approximate weight: 195 kg/km
- Rated Voltage Uo/U: 600 V
MOVEPOWER C 4 x 4,0 mm²
Product ref.
- Packaging: Drum (1000m)
- Construction type: (4G4)C
- Number of cores: 4
- Conductor cross-section: 4 mm²
- Outer Diameter: 12.1 mm
- Copper content: 194 kg/km
- Approximate weight: 249 kg/km
- Rated Voltage Uo/U: 600 V
MOVEPOWER C 5 x 4,0 mm²
Product ref.
- Packaging: Drum (1000m)
- Construction type: (5G4)C
- Number of cores: 5
- Conductor cross-section: 4 mm²
- Outer Diameter: 13.5 mm
- Copper content: 244 kg/km
- Approximate weight: 305 kg/km
- Rated Voltage Uo/U: 600 V
Description
Description
Standards
-
ProductUL and CSA approval
MOVEPOWER C for continuos moving and track-chain application, highly flexible, oil resistant and halogen free. The excellent mechanical characteristics of the PUR jacket, like tear and abrasion also at low temperature, make these cables suitable for extreme application conditions. The overall tinned copper braid shield protects against any EMC-influence and avoids any electric noise.
Applications:
- tracksystem for tool machine
- work centres
- marble machines
- automatic lines for assebly
- handling
- packaging
- everywhere is necessary to combine the best performance with the smallest dimension
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Bare copper
Insulation
Polyolefin
Insulation colour
Black w. number + yellow/green
Taping
Non woven tape
Shielding
85 ± 5% tinned copper braid coverage
Outer sheath
PUR
Sheath colour
Grey RAL 7001
Halogen free
Yes
Electrical characteristics
Electrical characteristics
Test voltage
4000 V
Mechanical characteristics
Mechanical characteristics
Bending cycles
10 Mio.
Speed
600 m/min
Maximum acceleration
60 m/s²
Usage characteristics
Usage characteristics
Field of application
Dynamic
Minimum dynamic operating bending radius
6.5 (xD)
Operating temperature, range
-30 ... 80 °C
Storage temperature, range
-40 ... 80 °C
Oil resistance
EN 50363-10-2
Flame retardant
IEC/EN 60332-1-2; FT1; UL 1581 FT1
