Video Endoscopy cable assemblies
Very flexible cable with an extremely good mechanical behaviour.
Withstands miscellaneous sterilisation process.
- Product ref. : Etude 133491
- Country ref. : Etude 133491
Description
Description
Standards
-
NationalCustomer specification

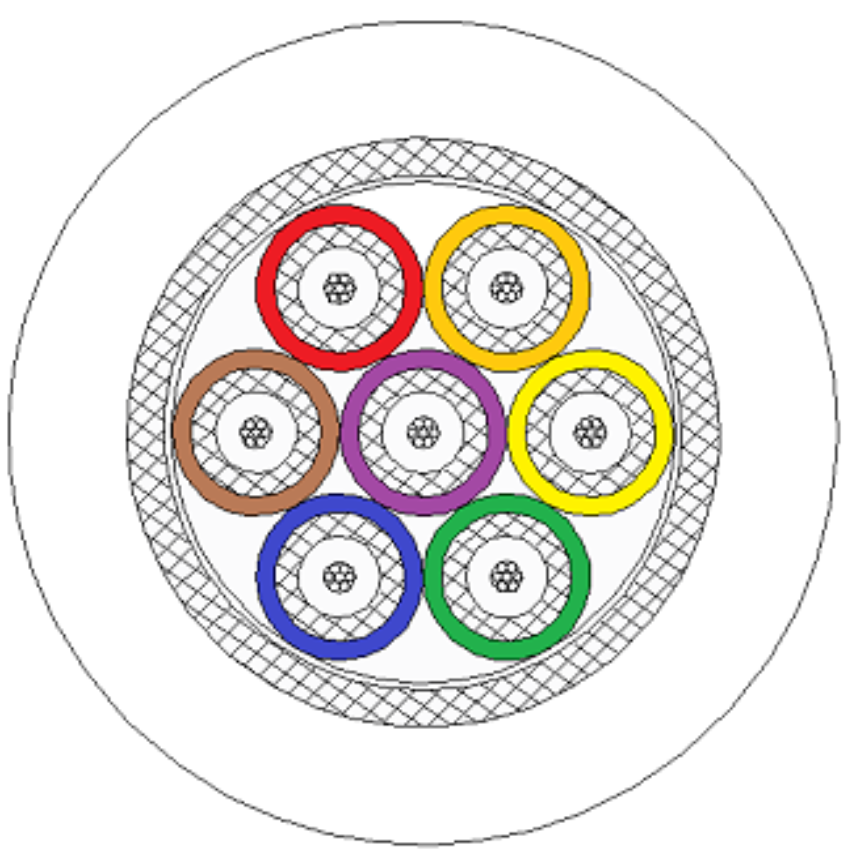

1- CORE (A)
AWG 36 stranded Silver plated copper conductor.
FEP insulation.
Diameter : 0.40 +/- 0.03 mm
Tin plated copper braid.
Wires diameter 0.05 mm
Nom. coverage : 90%
FEP Jacket.
Diameter : 0.81 +/- 0.03 mm
ASSEMBLY
1 + 6 Cores (A)
Overall PTFE Tape
SHIELD
Tin plated copper braid.
Wires diameter 0.08 mm
Min. coverage : 90%
Medical grade PVC Jacket
Diameter : 4.00 +/- 0.15 mm
Mechanical Characteristics
Minimum static bending radius : 5 x Overall diameter
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Silvered copper
Conductor shape
Multi stranded
Construction type
Shielded and sheathed
Insulation
Fluor polymer
Dimensional characteristics
Dimensional characteristics
Wire diameter
0.4 mm
Outer Diameter
4 mm
Maximum outer diameter
4.15 mm
Approximate weight
26 g/m
Electrical characteristics
Electrical characteristics
Operating voltage
30 V
Mechanical characteristics
Mechanical characteristics
Cable flexibility
Very flexible
Usage characteristics
Usage characteristics
Maximum operating temperature
80 °C
Minimum operating temperature
-40 °C
Mechanical Resistance
Good mechanical resistance
