Video Endoscopy cable assemblies
Very flexible cable with an extremely good mechanical behaviour.
Withstands miscellaneous sterilisation process.
- Product ref. : Etude 133144
- Country ref. : Etude 133144
Description
Description
Standards
-
ProductNexans specification

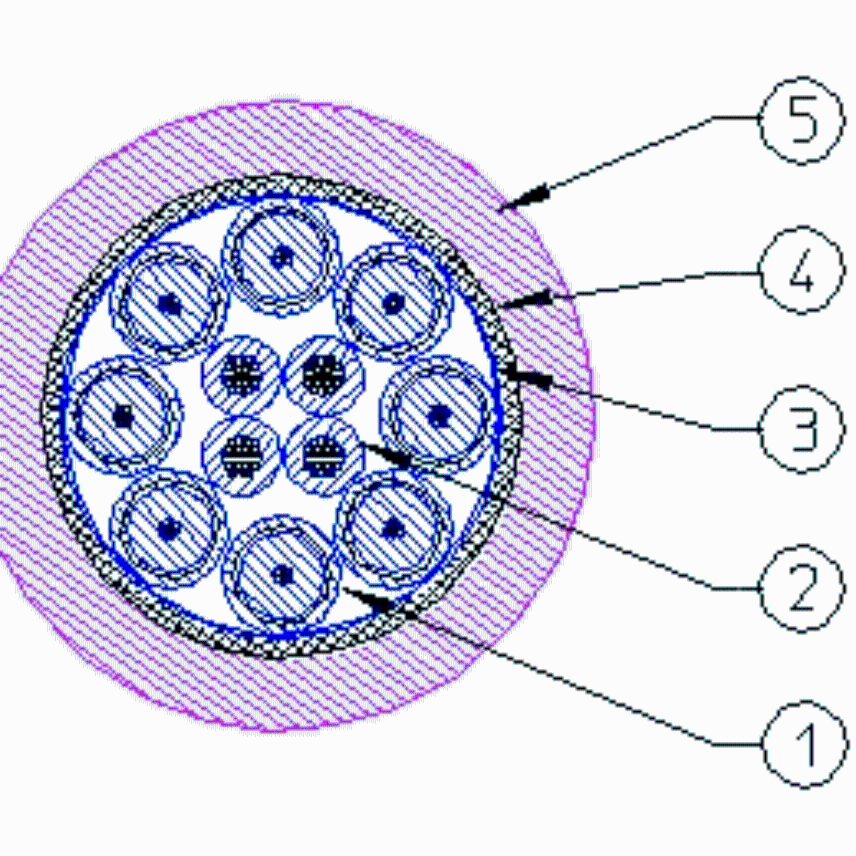

1- CORE (A)
AWG 34 (7 x 0.064)
Stranded silver plated alloy
MFA insulation
Diameter : 0.85 +/- 0.03 mm
AWG 44 Silver plated copper
Spiral shield
Diameter : 0.95 mm
MFA jacket
Diameter : 1.15 +/- 0.05 mm
2- CORE (B)
AWG 28 (19 x 0.08)
Stranded silver plated alloy
MFA insulation
Diameter : 0.78 +/- 0.05 mm
ASSEMBLY
8 Cores (A) + 4 Cores (B) twisted
Diameter : 4.2 mm
3- PTFE Tape
Diameter : 4.25 mm
4- SHILED
AWG 40 Silver plated copper braid
85% coverage
Diameter : 4.61 mm
5- MEDICAL PVC
Diameter : 6 +/- 0.15 mm
Main Characteristics
Minimum static bending radius : 5 x Overall diameter.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Silvered copper
Conductor shape
Multi stranded
Construction type
Shielded and sheathed
Insulation
PFA
Dimensional characteristics
Dimensional characteristics
Wire diameter
- mm
Outer Diameter
6 mm
Maximum outer diameter
6.15 mm
Approximate weight
51.54 g/m
Electrical characteristics
Electrical characteristics
Operating voltage
24 V
Mechanical characteristics
Mechanical characteristics
Cable flexibility
Very flexible
Usage characteristics
Usage characteristics
Maximum operating temperature
85 °C
Minimum operating temperature
-30 °C
Mechanical Resistance
Good mechanical resistance
