Study 132798
Study 132798
USB2 Type
Very flexible cable with an extremely good mechanical behaviour.
Withstands miscellaneous sterilisation process.
- Product ref. : Etude 132798
Description
Description
Standards
-
ProductNexans specification

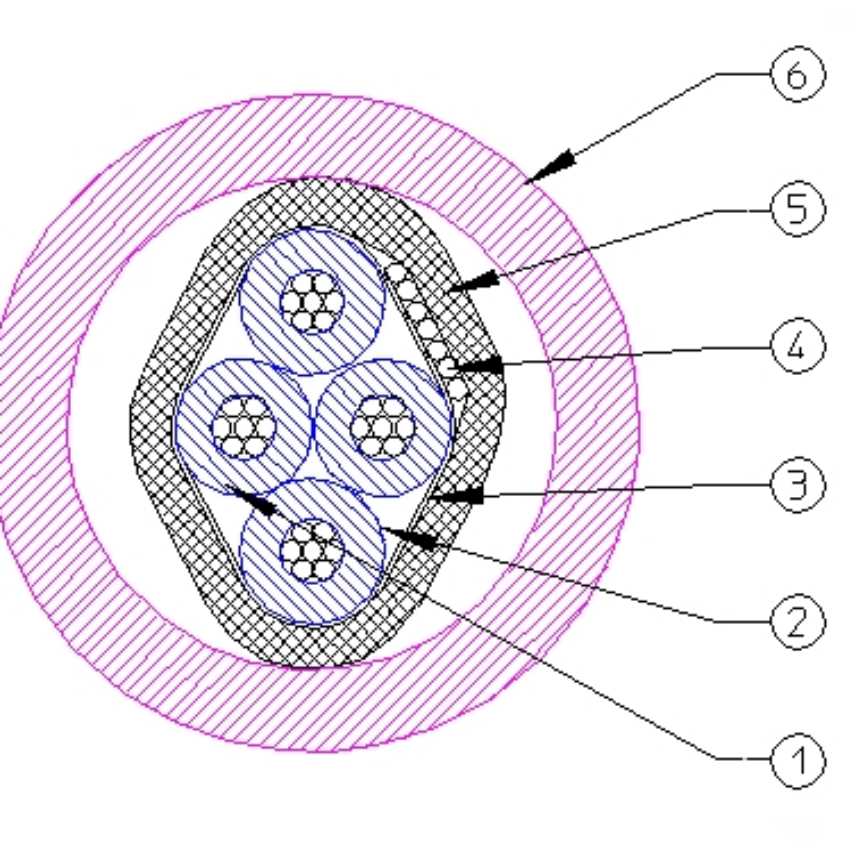

1- CORE (A)
AWG 28 stranded silver plated copper conductor.
MFA insulation.
Diameter : 0.77 +/- 0.05 mm.
2- CORE (B)
AWG 28 stranded Silver plated copper conductor.
MFA insulation.
Nominal diameter : 0.80 +/- 0.05 mm.
Assembly
2 Cores (A) twisted + 2 Cores (B)
3- Polyester Aluminium tape
4- 7 x 0.12 mm Silver plated copper
5- SHIELD
AWG 38 Silver plated copper braid.
6- Medical PVC Jacket
Diameter : 4.00 +/- 0.10 mm.
Mechanical performances
Minimum static bending radius : 5 x Overall diameter.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Silvered copper
Conductor shape
Multi stranded
Construction type
Shielded and sheathed
Insulation
PFA
Dimensional characteristics
Dimensional characteristics
Wire diameter
0.77 mm
Outer Diameter
4 mm
Maximum outer diameter
4.1 mm
Approximate weight
22.7 g/m
Electrical characteristics
Electrical characteristics
Operating voltage
24 V
Mechanical characteristics
Mechanical characteristics
Cable flexibility
Very flexible
Usage characteristics
Usage characteristics
Maximum operating temperature
85 °C
Minimum operating temperature
-30 °C
Mechanical Resistance
Good mechanical resistance
