Study 124810
Study 124810
Very flexible cable with an extremely good mechanical behaviour.
Withstands miscellaneous sterilisation processes.
- Country ref. : Etude 124810
Description
Description
Standards
-
ProductNexans specification

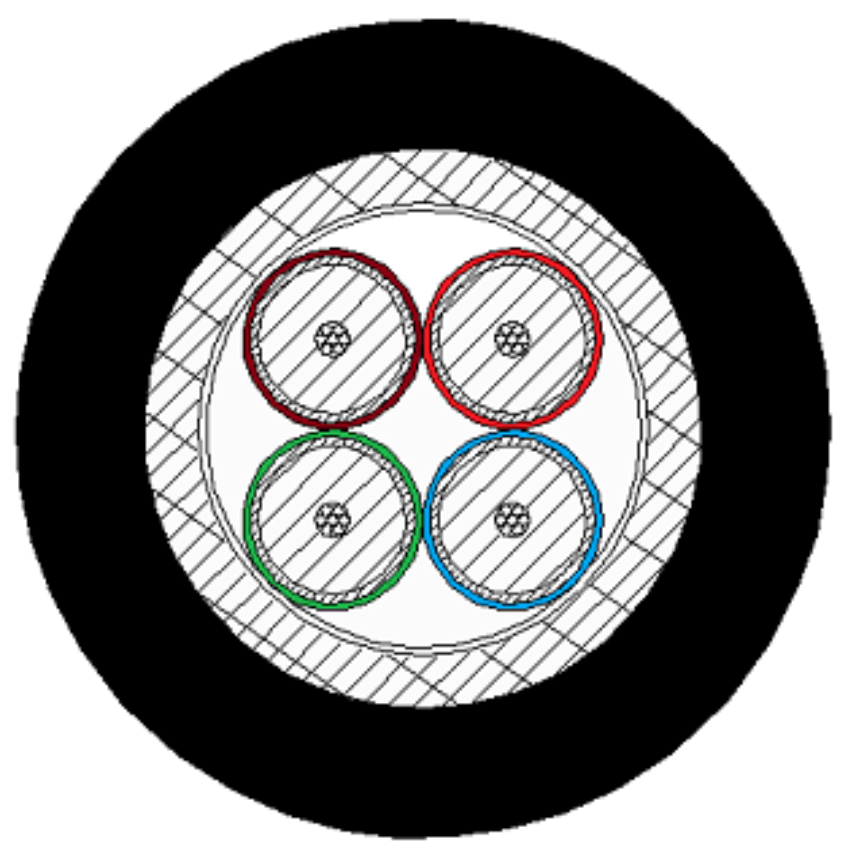

1- CORE (A)
AWG 38 stranded Silver plated copper alloy conductor.
FEP insulation.
Diameter : 0.51 +/- 0.02 mm.
AWG 48 Silver plated copper spiral shield.
Nominal diameter : 0.57 mm.
FEP jacket
Diameter : 0.62 +/- 0.02 mm
Assembly
4 Cores (A) twisted.
Nominal diameter : 1.50 mm
2- PTFE Tape
Nominal diameter : 1.55 mm
3- SHIELD
AWG 40 Tin plated copper braid.
90% coverage.
Nominal diameter : 1.92 mm
4- JACKET
Medical PVC
Diameter : 2.80 +/- 0.10 mm
Main Characteristics
Minimum bending radius : 5 x Overall diameter.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Construction type
Shielded and sheathed
Conductor shape
Multi stranded
Conductor material
Silver coated copper
Insulation
FEP
Dimensional characteristics
Dimensional characteristics
Approximate weight
12 g/m
Outer Diameter
2.8 mm
Electrical characteristics
Electrical characteristics
Operating voltage
250 V
Mechanical characteristics
Mechanical characteristics
Cable flexibility
Very flexible
Usage characteristics
Usage characteristics
Maximum operating temperature
85 °C
Minimum operating temperature
-30 °C
RoHS compliant
Yes
