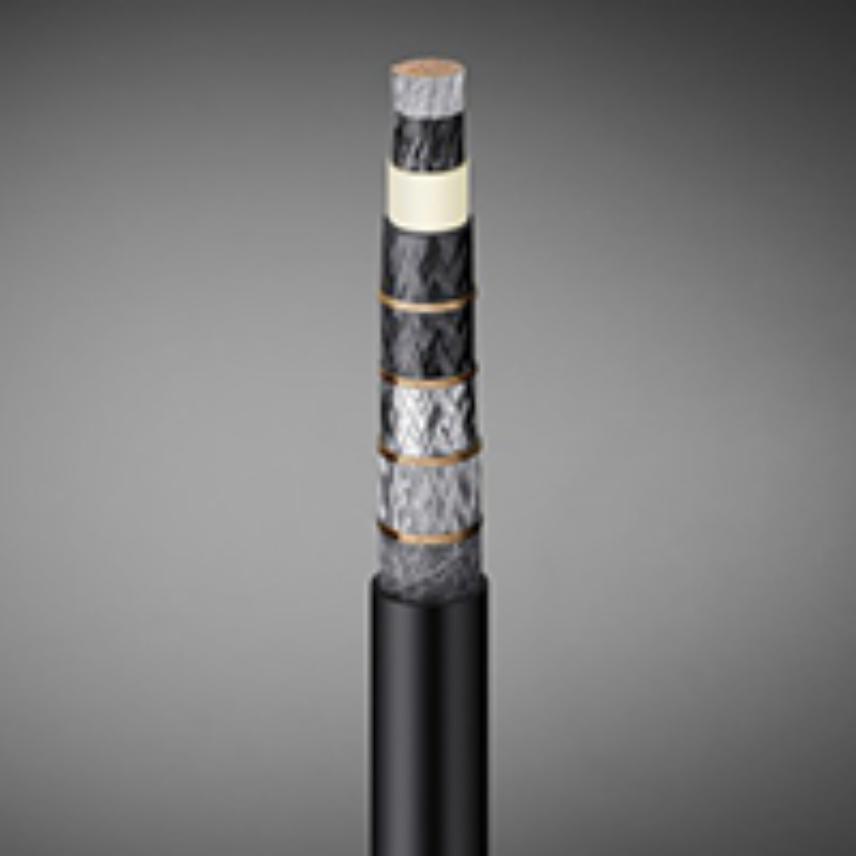

WINDLINK® LV-RS (N)HXCMFOE
0.6/1 kV
WINDLINK® LV-RS (N)HXCMFOE
0.6/1 kV
Torsion resistant low-voltage loop cable for free hanging of max. 100 m
Screeened cables acc. to EN 50525-2-21 and EN 50125-3-21
1x95 RF
Product ref.
- Packaging: Drum (1000m)
- Conductor cross-section: 95 mm²
- Minimum outer diameter: 20.8 mm
- Maximum outer diameter: 21.8 mm
- Approximate weight: 1200 kg/km
1x120 RF
Product ref.
- Packaging: Drum (1000m)
- Conductor cross-section: 120 mm²
- Minimum outer diameter: 22.7 mm
- Maximum outer diameter: 24.7 mm
- Approximate weight: 1500 kg/km
1x150 RF
Product ref.
- Packaging: Drum (1000m)
- Conductor cross-section: 150 mm²
- Minimum outer diameter: 25.2 mm
- Maximum outer diameter: 27.2 mm
- Approximate weight: 1700 kg/km
1x185 RF
Product ref.
- Packaging: Drum (1000m)
- Conductor cross-section: 185 mm²
- Minimum outer diameter: 27.9 mm
- Maximum outer diameter: 30.9 mm
- Approximate weight: 2100 kg/km
1x240 RF
Product ref.
- Packaging: Drum (1000m)
- Conductor cross-section: 240 mm²
- Minimum outer diameter: 31.1 mm
- Maximum outer diameter: 33.1 mm
- Approximate weight: 2700 kg/km
1x300 RF
Product ref.
- Packaging: Drum (1000m)
- Conductor cross-section: 300 mm²
- Minimum outer diameter: 33.5 mm
- Maximum outer diameter: 35.5 mm
- Approximate weight: 3400 kg/km
Description
Description
Standards
-
ProductEN 50525-2-21; EN 50264; EN 50363; IEC 60502
Application
Low-voltage loop cable WINDLINK® LV-RS (N)HXCMFOE in two sheath design was developed for special application condition in windturbines. The construction is torsion resistant by free hanging max. 100 m. These cables are specified for medium mechanical stress and for operation under permanent influence of seawater and usage outdoor.
Resistance to:
- Permanent movement
- Permanent vibrations
- Compressive stress
- Oil
- Leach
- Flame-retardant
- Permanent influence of seawater
- Weather
- UV
- Ozone influence, suitable for moving outdoor
- Suitable for torsion up to +/- 80°/meter, test 2,000 cycles

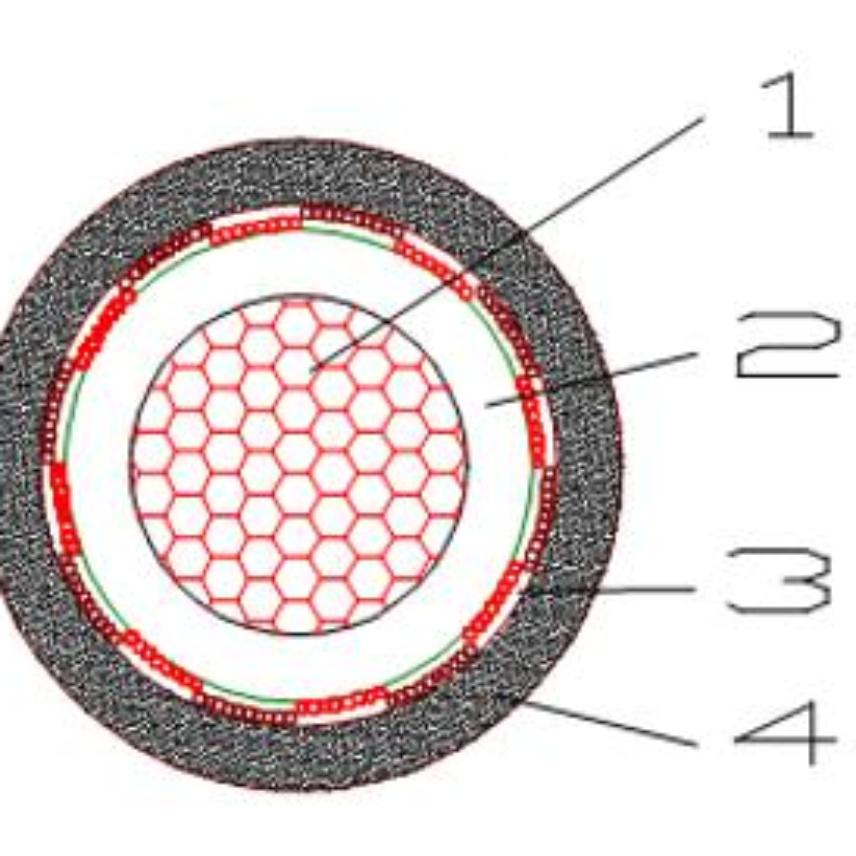

Design
1. Conductor
Copper, plain, flexible stranded, class 5 acc. to DIN EN 60228
2. Insulation
Special EPR thermosetting compound
3. Screen
Tinned wire copper braid, covering min.80%
4. Outer Sheath
Special EVA thermosetting compound, ozone- and UV-resistant, oil-resistant,
colour: black
Operating condition
| Temperatures | moved transport and stock operating temperature at conductor short circuit teperature at conductor |
-40+ 90 °C -40/+90 °C 90 °C 250°C |
| Max. tensile load | short time, e.g.speed up N/mm² in operation |
50 15 |
| Bending radii | fixed free moving Inlet ant strain relief |
³ 3 x D ³ 5 x D ³ 5 x D (D = cable diameter) |
| Torsion | max. permissible angle | ± 80 °/m |
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Documentation
Selling & delivery Information
Inkjet marking e.g.: WINDLINK® LV-RS (N)HXMCFOE 1x95 0.6/1 kV I NEXANS I
