FLAMEX® EN 50306-2
FLAMEX® EN 50306-2
FLAMEX
CONTROL WIRES

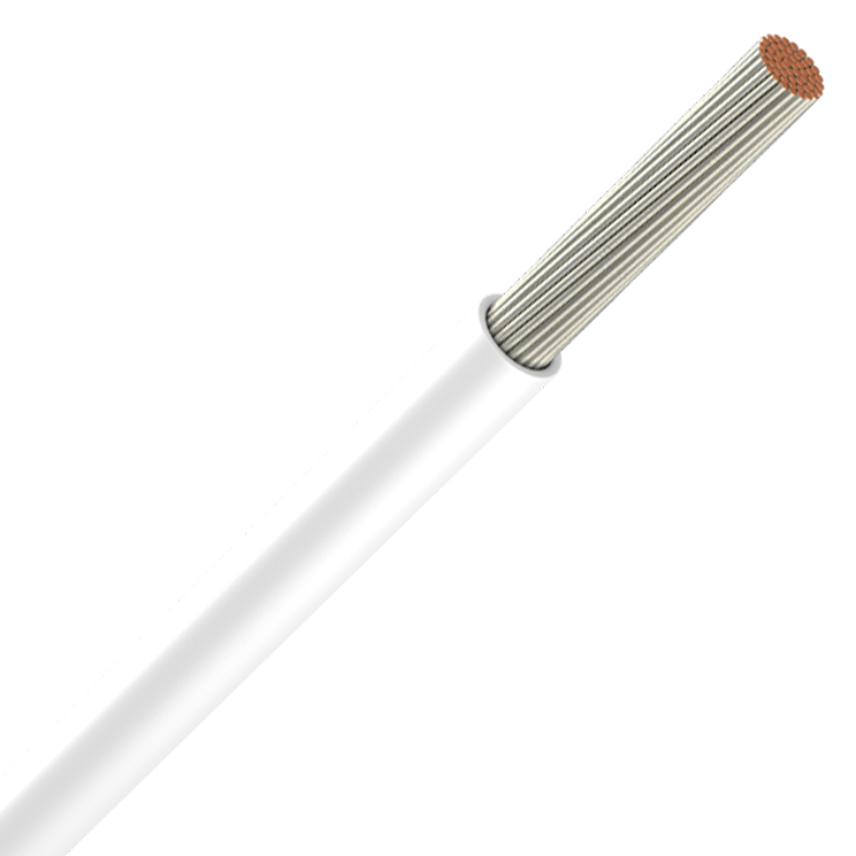

Strictly halogen-free, FLAMEX® control wires combine the advantages of small size, lightweight, high chemical resistance and high mechanical properties. They are recommended for installation in all types of railway vehicles. A 125°C conductor temperature is allowed during 20,000 hours cumulative working time for EN 50306-2.
FLAMEX 20 EN 50306-2 1X0.5 M
Lynxeo ref. 10097799 - País de referencia 2PG198
- Sección del conductor: 0,5 mm²
- diámetro del conductor (mm): 0.95
- Minimum cable diameter: 1,15 mm
- Maximum cable diameter: 1,45 mm
- Peso aproximado: 6 kg/km
FLAMEX 20 EN 50306-2 1X0.75 M
Lynxeo ref. 10128028 - País de referencia 2PG199
- Sección del conductor: 0,75 mm²
- diámetro del conductor (mm): 1.15
- Minimum cable diameter: 1,35 mm
- Maximum cable diameter: 1,65 mm
- Peso aproximado: 8,5 kg/km
FLAMEX 20 EN 50306-2 1X1.0 M
Lynxeo ref. 10097800 - País de referencia 2PG200
- Sección del conductor: 1 mm²
- diámetro del conductor (mm): 1.30
- Minimum cable diameter: 1,4 mm
- Maximum cable diameter: 1,8 mm
- Peso aproximado: 10,5 kg/km
FLAMEX 20 EN 50306-2 1X1.5 M
Lynxeo ref. 10097801 - País de referencia 2PF779
- Sección del conductor: 1,5 mm²
- diámetro del conductor (mm): 1.60
- Minimum cable diameter: 1,9 mm
- Maximum cable diameter: 2,3 mm
- Peso aproximado: 16 kg/km
FLAMEX 20 EN 50306-2 1X2.5 M
Lynxeo ref. 10097802 - País de referencia 2PG201
- Sección del conductor: 2,5 mm²
- diámetro del conductor (mm): 2.00
- Minimum cable diameter: 2,45 mm
- Maximum cable diameter: 2,85 mm
- Peso aproximado: 26,5 kg/km
Descripción
Descripción
Estándares
-
ProductoEN 45545-2 (HL3)
-
EnsayoEN 50305; EN 50306
DESIGN
1. Conductor
Flexible stranded tinned copper
2. Insulation
Thin wall halogen-free cross-linked material acc. EN 50306-2
Colour: white
Example of marking: FLAMEX 239 EN 50306-2 - 300 V - 1 x cross-section - M - week/year
GUIDE TO USE
- Cabling rules are given in EN 50343 and EN 50355
- Permissible current carrying capacities: values and calculation method are given in EN 50343
- Bending radius:
- Static use: 5 x outer cable diameter
- For installation and occasional movements: 10 x outer cable diameter
