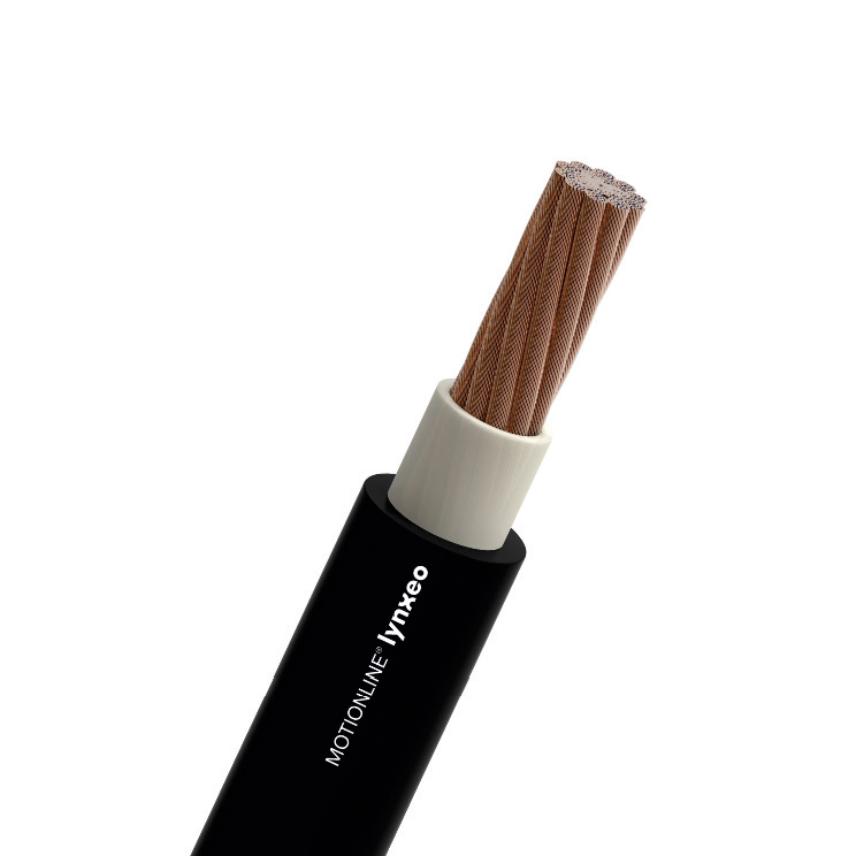

SINGLE CORE POWER CABLES - UNSHIELDED
SINGLE CORE POWER CABLES - UNSHIELDED
Single core power cables for extremely dynamic applications MOTIONLINE® ADVANCED
Lee másSINGLE CORE POWER CABLES 1x6
Lynxeo ref. 10553184
- Embalaje: Bobina (1000m)
- Construction type: 1x6
- Contenido de cobre: 58 kg/km
- Peso aproximado: 110 kg/km
- Diámetro exterior : 7,4 mm
SINGLE CORE POWER CABLES 1x10
Lynxeo ref. 49346810
- Embalaje: Bobina (1000m)
- Construction type: 1x10
- Contenido de cobre: 97 kg/km
- Peso aproximado: 166 kg/km
- Diámetro exterior : 8,4 mm
SINGLE CORE POWER CABLES 1x16
Lynxeo ref. 49346910
- Embalaje: Bobina (1000m)
- Construction type: 1x16
- Contenido de cobre: 154 kg/km
- Peso aproximado: 256 kg/km
- Diámetro exterior : 9,5 mm
SINGLE CORE POWER CABLES 1x25
Lynxeo ref. 49347010
- Embalaje: Bobina (1000m)
- Construction type: 1x25
- Contenido de cobre: 240 kg/km
- Peso aproximado: 362 kg/km
- Diámetro exterior : 11,3 mm
SINGLE CORE POWER CABLES 1x35
Lynxeo ref. 49348910
- Embalaje: Bobina (1000m)
- Construction type: 1x35
- Contenido de cobre: 340 kg/km
- Peso aproximado: 466 kg/km
- Diámetro exterior : 12,5 mm
SINGLE CORE POWER CABLES 1x50
Lynxeo ref. 49349010
- Embalaje: Bobina (1000m)
- Construction type: 1x50
- Contenido de cobre: 490 kg/km
- Peso aproximado: 686 kg/km
- Diámetro exterior : 14,7 mm
SINGLE CORE POWER CABLES 1x70
Lynxeo ref. 10553191
- Embalaje: Bobina (1000m)
- Construction type: 1x70
- Contenido de cobre: 690 kg/km
- Peso aproximado: 950 kg/km
- Diámetro exterior : 16,9 mm
SINGLE CORE POWER CABLES 1x95
Lynxeo ref. 49349210
- Embalaje: Bobina (1000m)
- Construction type: 1x95
- Contenido de cobre: 915 kg/km
- Peso aproximado: 1276 kg/km
- Diámetro exterior : 18,6 mm
SINGLE CORE POWER CABLES 1x120
Lynxeo ref.
- Embalaje: Bobina (1000m)
- Construction type: 1x120
- Contenido de cobre: 1152 kg/km
- Peso aproximado: 1553 kg/km
- Diámetro exterior : 21,4 mm
SINGLE CORE POWER CABLES 1x150
Lynxeo ref.
- Embalaje: Bobina (1000m)
- Construction type: 1x150
- Contenido de cobre: 1460 kg/km
- Peso aproximado: 1670 kg/km
- Diámetro exterior : 23,3 mm
SINGLE CORE POWER CABLES 1x185
Lynxeo ref.
- Embalaje: Bobina (1000m)
- Construction type: 1x185
- Contenido de cobre: 1800 kg/km
- Peso aproximado: 2100 kg/km
- Diámetro exterior : 26,6 mm
Descripción
Descripción
Estándares
-
ProductoUL and CSA approval
MOTIONLINE® Power supply single core cables for dynamic applications with PVC Jacket, unshielded, resistant to oils, flame retardant.
Design
Conductor
Stranded bare copper
Core insulation
PVC
Black or green-yellow
Jacket
PVC
Black
Características
Características
Características de construcción
Características de construcción
Material del conductor
Bending-resistant conductor with bare copper wires
Aislamiento
TPM with very low capacitance
Cubierta exterior
PUR
Color de cubierta
Negro
Libre de halógenos
Sí
Características eléctricas
Características eléctricas
Rated Voltage Uo/U
0.6/1 kV
Test voltage
4000 V
Características mecánicas
Características mecánicas
Bending cycles
5 Mio.
Speed
180 m/min
Maximum acceleration
10 m/s²
Características de uso
Características de uso
Campo de aplicación
Dynamic
Minimum dynamic operating bending radius
10 (xD)
Temperatura ambiente de utilización (rango)
-30 ... 80 °C
Temperatura de almacenamiento (rango)
-30 ... 80 °C
No propagación de la llama
IEC 60332-1-2; UL 1581 FT1
Resistencia a aceites
DIN EN 50363-10-2 & DIN EN 60811-404
