EN 2267-009 DRB, DRC, DRD
EN 2267-009 DRB, DRC, DRD
Designed for general Purpose Aircraft Wiring Applications.
Multicores DRA
DRB 10 051
Produkt ref. EN 2267-009B 051P (DRB 10) - Land ref. 10132397
- Aderkennzeichnung: Red, Blue
- Maximaler Außendurchmesser: 6,66 mm
- Außendurchmesser, nom.: 6,42 mm
- Aderanzahl: 2
- Max. Gewicht: 102,69 g/m
- Nominal weight: 96,63 g/m
- Maximum DC resistance at 20°C: 4,22 Ohm/100m
DRB 12 030
Produkt ref. EN 2267-009B 030P (DRB 12) - Land ref. 10066384
- Aderkennzeichnung: Red, Blue
- Maximaler Außendurchmesser: 5,4 mm
- Außendurchmesser, nom.: 5,14 mm
- Aderanzahl: 2
- Max. Gewicht: 64,54 g/m
- Nominal weight: 59,67 g/m
- Maximum DC resistance at 20°C: 6,99 Ohm/100m
DRB 14 020
Produkt ref. EN 2267-009B 020P (DRB 14) - Land ref. 10062808
- Aderkennzeichnung: Red, Blue
- Maximaler Außendurchmesser: 4,48 mm
- Außendurchmesser, nom.: 4,32 mm
- Aderanzahl: 2
- Max. Gewicht: 40,75 g/m
- Nominal weight: 39,39 g/m
- Maximum DC resistance at 20°C: 11,2 Ohm/100m
DRB 16 012
Produkt ref. EN 2267-009B 012P (DRB 16) - Land ref. 10121194
- Aderkennzeichnung: Red, Blue
- Maximaler Außendurchmesser: 3,84 mm
- Außendurchmesser, nom.: 3,66 mm
- Aderanzahl: 2
- Max. Gewicht: 30,1 g/m
- Nominal weight: 28,66 g/m
- Maximum DC resistance at 20°C: 14,9 Ohm/100m
DRB 18 010
Produkt ref. EN 2267-009B 010P (DRB 18) - Land ref. 10121193
- Aderkennzeichnung: Red, Blue
- Maximaler Außendurchmesser: 3,22 mm
- Außendurchmesser, nom.: 3,08 mm
- Aderanzahl: 2
- Max. Gewicht: 21,49 g/m
- Nominal weight: 20,71 g/m
- Maximum DC resistance at 20°C: 21,7 Ohm/100m
DRB 20 006
Produkt ref. EN 2267-009B 006P (DRB 20) - Land ref. 10062807
- Aderkennzeichnung: Red, Blue
- Maximaler Außendurchmesser: 2,68 mm
- Außendurchmesser, nom.: 2,6 mm
- Aderanzahl: 2
- Max. Gewicht: 14,11 g/m
- Nominal weight: 13,4 g/m
- Maximum DC resistance at 20°C: 34,1 Ohm/100m
DRB 22 004
Produkt ref. EN 2267-009B 004P (DRB 22) - Land ref. 10062806
- Aderkennzeichnung: Red, Blue
- Maximaler Außendurchmesser: 2,2 mm
- Außendurchmesser, nom.: 2,1 mm
- Aderanzahl: 2
- Max. Gewicht: 8,53 g/m
- Nominal weight: 7,94 g/m
- Maximum DC resistance at 20°C: 61,7 Ohm/100m
DRB 24 002
Produkt ref. EN 2267-009B 002P (DRB 24) - Land ref. 10066382
- Aderkennzeichnung: Red, Blue
- Maximaler Außendurchmesser: 1,92 mm
- Außendurchmesser, nom.: 1,82 mm
- Aderanzahl: 2
- Max. Gewicht: 5,6 g/m
- Nominal weight: 5,39 g/m
- Maximum DC resistance at 20°C: 117 Ohm/100m
DRB 26 001
Produkt ref. EN 2267-009B 001P (DRB 26) - Land ref. 10066375
- Aderkennzeichnung: Red, Blue
- Maximaler Außendurchmesser: 1,68 mm
- Außendurchmesser, nom.: 1,56 mm
- Aderanzahl: 2
- Max. Gewicht: 4,28 g/m
- Nominal weight: 3,98 g/m
- Maximum DC resistance at 20°C: 165 Ohm/100m
DRB 4 220
Produkt ref. EN 2267-009B 220P (DRB 4) - Land ref. 10098671
- Aderkennzeichnung: Red, Blue
- Maximaler Außendurchmesser: 14,82 mm
- Außendurchmesser, nom.: 14,12 mm
- Aderanzahl: 2
- Max. Gewicht: 457,32 g/m
- Nominal weight: 438,91 g/m
- Maximum DC resistance at 20°C: 1 Ohm/100m
DRB 6 140
Produkt ref. EN 2267-009B 001P (DRB 6)
- Aderkennzeichnung: Red, Blue
- Maximaler Außendurchmesser: 11,4 mm
- Außendurchmesser, nom.: 11,1 mm
- Aderanzahl: 2
- Max. Gewicht: 278,1 g/m
- Nominal weight: 270,12 g/m
- Maximum DC resistance at 20°C: 1,63 Ohm/100m
DRB 8 090
Produkt ref. EN 2267-009B 090P (DRB 8) - Land ref. 10124422
- Aderkennzeichnung: Red, Blue
- Maximaler Außendurchmesser: 8,8 mm
- Außendurchmesser, nom.: 8,6 mm
- Aderanzahl: 2
- Max. Gewicht: 185,4 g/m
- Nominal weight: 179,13 g/m
- Maximum DC resistance at 20°C: 2,37 Ohm/100m
DRC 10 051
Produkt ref. EN 2267-009C 051P (DRC 10) - Land ref. 10068341
- Aderkennzeichnung: Red,Blue,Yellow
- Maximaler Außendurchmesser: 7,16 mm
- Außendurchmesser, nom.: 6,92 mm
- Aderanzahl: 3
- Max. Gewicht: 154,04 g/m
- Nominal weight: 144,95 g/m
- Maximum DC resistance at 20°C: 4,22 Ohm/100m
DRC 12 030
Produkt ref. EN 2267-009C 030P (DRC 12) - Land ref. 10068340
- Aderkennzeichnung: Red,Blue,Yellow
- Maximaler Außendurchmesser: 5,81 mm
- Außendurchmesser, nom.: 5,54 mm
- Aderanzahl: 3
- Max. Gewicht: 96,81 g/m
- Nominal weight: 89,5 g/m
- Maximum DC resistance at 20°C: 6,99 Ohm/100m
DRC 14 020
Produkt ref. EN 2267-009C 020P (DRC 14) - Land ref. 10062789
- Aderkennzeichnung: Red,Blue,Yellow
- Maximaler Außendurchmesser: 4,82 mm
- Außendurchmesser, nom.: 4,65 mm
- Aderanzahl: 3
- Max. Gewicht: 61,12 g/m
- Nominal weight: 59,09 g/m
- Maximum DC resistance at 20°C: 11,2 Ohm/100m
DRC 16 012
Produkt ref. EN 2267-009C 012P (DRC 16) - Land ref. 10117287
- Aderkennzeichnung: Red,Blue,Yellow
- Maximaler Außendurchmesser: 4,13 mm
- Außendurchmesser, nom.: 3,94 mm
- Aderanzahl: 3
- Max. Gewicht: 45,14 g/m
- Nominal weight: 42,99 g/m
- Maximum DC resistance at 20°C: 14,9 Ohm/100m
DRC 18 010
Produkt ref. EN 2267-009C 010P (DRC 18 )
- Aderkennzeichnung: Red,Blue,Yellow
- Maximaler Außendurchmesser: 3,46 mm
- Außendurchmesser, nom.: 3,32 mm
- Aderanzahl: 3
- Max. Gewicht: 32,23 g/m
- Nominal weight: 31,06 g/m
- Maximum DC resistance at 20°C: 21,7 Ohm/100m
DRC 20 006
Produkt ref. EN 2267-009C 006P (DRC 20) - Land ref. 10062690
- Aderkennzeichnung: Red,Blue,Yellow
- Maximaler Außendurchmesser: 2,88 mm
- Außendurchmesser, nom.: 2,8 mm
- Aderanzahl: 3
- Max. Gewicht: 21,17 g/m
- Nominal weight: 20,1 g/m
- Maximum DC resistance at 20°C: 34,1 Ohm/100m
DRC 22 004
Produkt ref. EN 2267-009C 004P (DRC 22) - Land ref. 10062687
- Aderkennzeichnung: Red,Blue,Yellow
- Maximaler Außendurchmesser: 2,37 mm
- Außendurchmesser, nom.: 2,26 mm
- Aderanzahl: 3
- Max. Gewicht: 12,79 g/m
- Nominal weight: 11,9 g/m
- Maximum DC resistance at 20°C: 61,7 Ohm/100m
DRC 24 002
Produkt ref. EN 2267-009C 002P (DRC 24) - Land ref. 10062686
- Aderkennzeichnung: Red,Blue,Yellow
- Maximaler Außendurchmesser: 2,06 mm
- Außendurchmesser, nom.: 1,96 mm
- Aderanzahl: 3
- Max. Gewicht: 8,4 g/m
- Nominal weight: 8,08 g/m
- Maximum DC resistance at 20°C: 117 Ohm/100m
DRC 26 001
Produkt ref. EN 2267-009C 001P (DRC 26)
- Aderkennzeichnung: Red,Blue,Yellow
- Maximaler Außendurchmesser: 1,81 mm
- Außendurchmesser, nom.: 1,68 mm
- Aderanzahl: 3
- Max. Gewicht: 6,43 g/m
- Nominal weight: 5,97 g/m
- Maximum DC resistance at 20°C: 165 Ohm/100m
DRC 4 220
Produkt ref. EN 2267-009C 220P (DRC 4)
- Aderkennzeichnung: Red,Blue,Yellow
- Maximaler Außendurchmesser: 15,93 mm
- Außendurchmesser, nom.: 15,21 mm
- Aderanzahl: 3
- Max. Gewicht: 685,98 g/m
- Nominal weight: 658,36 g/m
- Maximum DC resistance at 20°C: 1 Ohm/100m
DRC 6 140
Produkt ref. EN 2267-009C 140P (DRC 6) - Land ref. 10062790
- Aderkennzeichnung: Red,Blue,Yellow
- Maximaler Außendurchmesser: 12,26 mm
- Außendurchmesser, nom.: 11,96 mm
- Aderanzahl: 3
- Max. Gewicht: 417,15 g/m
- Nominal weight: 405,17 g/m
- Maximum DC resistance at 20°C: 1,63 Ohm/100m
DRC 8 090
Produkt ref. EN 2267-009C 090P (DRC 8) - Land ref. 10068342
- Aderkennzeichnung: Red,Blue,Yellow
- Maximaler Außendurchmesser: 9,46 mm
- Außendurchmesser, nom.: 9,27 mm
- Aderanzahl: 3
- Max. Gewicht: 278,1 g/m
- Nominal weight: 268,7 g/m
- Maximum DC resistance at 20°C: 2,37 Ohm/100m
DRD 10 051
Produkt ref. EN 2267-009D 051P (DRD 10) - Land ref. 10140495
- Aderkennzeichnung: Red, Blue, Yellow, Green
- Maximaler Außendurchmesser: 7,99 mm
- Außendurchmesser, nom.: 7,75 mm
- Aderanzahl: 4
- Max. Gewicht: 205,38 g/m
- Nominal weight: 193,27 g/m
- Maximum DC resistance at 20°C: 4,22 Ohm/100m
DRD 12 030
Produkt ref. EN 2267-009D 030P (DRD 12) - Land ref. 10140494
- Aderkennzeichnung: Red, Blue, Yellow, Green
- Maximaler Außendurchmesser: 6,48 mm
- Außendurchmesser, nom.: 6,2 mm
- Aderanzahl: 4
- Max. Gewicht: 129,08 g/m
- Nominal weight: 119,34 g/m
- Maximum DC resistance at 20°C: 6,99 Ohm/100m
DRD 14 020
Produkt ref. EN 2267-009D 020P (DRD 14) - Land ref. 10065072
- Aderkennzeichnung: Red, Blue, Yellow, Green
- Maximaler Außendurchmesser: 5,38 mm
- Außendurchmesser, nom.: 5,21 mm
- Aderanzahl: 4
- Max. Gewicht: 81,49 g/m
- Nominal weight: 78,78 g/m
- Maximum DC resistance at 20°C: 11,2 Ohm/100m
DRD 16 012
Produkt ref. EN 2267-009D 012P (DRD 16) - Land ref. 10117289
- Aderkennzeichnung: Red, Blue, Yellow, Green
- Maximaler Außendurchmesser: 4,61 mm
- Außendurchmesser, nom.: 4,42 mm
- Aderanzahl: 4
- Max. Gewicht: 60,19 g/m
- Nominal weight: 57,32 g/m
- Maximum DC resistance at 20°C: 14,9 Ohm/100m
DRD 18 010
Produkt ref. EN 2267-009D 010P (DRD 18)
- Aderkennzeichnung: Red, Blue, Yellow, Green
- Maximaler Außendurchmesser: 3,86 mm
- Außendurchmesser, nom.: 3,72 mm
- Aderanzahl: 4
- Max. Gewicht: 42,97 g/m
- Nominal weight: 41,41 g/m
- Maximum DC resistance at 20°C: 21,7 Ohm/100m
DRD 20 006
Produkt ref. EN 2267-009D 006P (DRD 20) - Land ref. 10062805
- Aderkennzeichnung: Red, Blue, Yellow, Green
- Maximaler Außendurchmesser: 3,22 mm
- Außendurchmesser, nom.: 3,14 mm
- Aderanzahl: 4
- Max. Gewicht: 28,22 g/m
- Nominal weight: 26,81 g/m
- Maximum DC resistance at 20°C: 34,1 Ohm/100m
DRD 22 004
Produkt ref. EN 2267-009D 004P (DRD 22) - Land ref. 10062804
- Aderkennzeichnung: Red, Blue, Yellow, Green
- Maximaler Außendurchmesser: 2,64 mm
- Außendurchmesser, nom.: 2,53 mm
- Aderanzahl: 4
- Max. Gewicht: 17,06 g/m
- Nominal weight: 15,87 g/m
- Maximum DC resistance at 20°C: 61,7 Ohm/100m
DRD 24 002
Produkt ref. EN 2267-009D 002P (DRD 24) - Land ref. 10062793
- Aderkennzeichnung: Red, Blue, Yellow, Green
- Maximaler Außendurchmesser: 2,3 mm
- Außendurchmesser, nom.: 2,2 mm
- Aderanzahl: 4
- Max. Gewicht: 11,21 g/m
- Nominal weight: 10,77 g/m
- Maximum DC resistance at 20°C: 117 Ohm/100m
DRD 26 001
Produkt ref. EN 2267-009D 001P (DRD 26)
- Aderkennzeichnung: Red, Blue, Yellow, Green
- Maximaler Außendurchmesser: 2,02 mm
- Außendurchmesser, nom.: 1,88 mm
- Aderanzahl: 4
- Max. Gewicht: 8,57 g/m
- Nominal weight: 7,96 g/m
- Maximum DC resistance at 20°C: 165 Ohm/100m
DRD 4 220
Produkt ref. EN 2267-009D 220P (DRD 4)
- Aderkennzeichnung: Red, Blue, Yellow, Green
- Maximaler Außendurchmesser: 17,78 mm
- Außendurchmesser, nom.: 17,04 mm
- Aderanzahl: 4
- Max. Gewicht: 914,64 g/m
- Nominal weight: 877,81 g/m
- Maximum DC resistance at 20°C: 1 Ohm/100m
DRD 6 140
Produkt ref. EN 2267-009D 140P (DRD 6)
- Aderkennzeichnung: Red, Blue, Yellow, Green
- Maximaler Außendurchmesser: 13,68 mm
- Außendurchmesser, nom.: 13,4 mm
- Aderanzahl: 4
- Max. Gewicht: 556,2 g/m
- Nominal weight: 540,23 g/m
- Maximum DC resistance at 20°C: 1,63 Ohm/100m
DRD 8 090
Produkt ref. EN 2267-009D 090P (DRD 8)
- Aderkennzeichnung: Red, Blue, Yellow, Green
- Maximaler Außendurchmesser: 10,56 mm
- Außendurchmesser, nom.: 10,38 mm
- Aderanzahl: 4
- Max. Gewicht: 370,8 g/m
- Nominal weight: 358,26 g/m
- Maximum DC resistance at 20°C: 2,37 Ohm/100m
Beschreibung
Beschreibung
Normen
-
ProduktEN 2267-009
-
TestsprEN 3475
DESIGN CONSTRUCTION
CORES

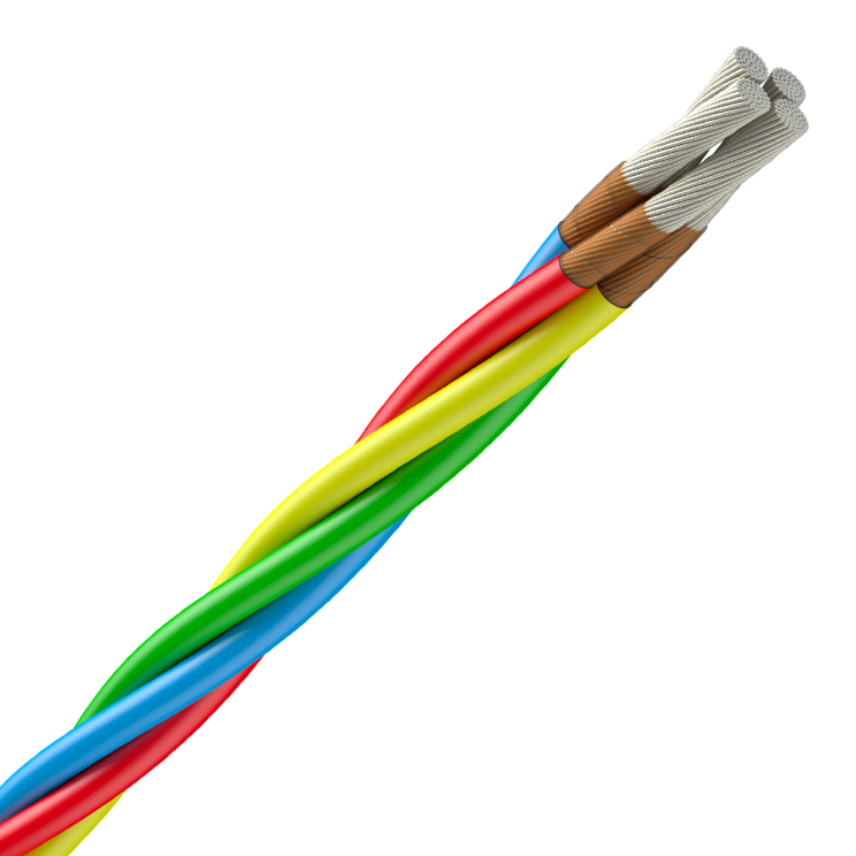

2, 3 or 4 cores EN2267-009A
IDENTIFICATION
| Colours of cores | : See table in this datasheet |
|
Colours of marking |
: White for red and green core, green for blue and yellow cores |
| Marking | : EN DRA ** FR F ++ |
| DRA = short designation | |
| ** = AWG | |
| FR = Country of origin (FR = France) | |
| F = Manufacturer (F = Lynxeo) | |
| ++ = Year of production (i.e. 14 = 2014) |
ELECTRICAL AND HIGH FREQUENCY PERFORMANCES
Voltage rating : 600 Volts RMS at sea level,
Usual Aerospace application are using 115 volts (Phase to neutral)
And 200 Volts (Phase to phase) 400 Hz AC or 29 Volts DC.
Maximum operating frequency: 2000Hz
