Video Endoscopy cable assemblies
Very flexible cable with an extremely good mechanical behaviour.
Withstands miscellaneous sterilisation process.
- Land ref. : Etude 133483
Beschreibung
Beschreibung
Normen
-
NationalCustomer specification
1- CORE (A)
AWG 32 stranded Silver plated copper alloy conductor.
FEP insulation.
Nom. diameter : 0.65 mm
AWG 44 Silver plated copper spiral shield.
Min. coverage : 90%
FEP Jacket.
Diameter : 0.91 +/- 0.03 mm
2- CORE (B)
AWG 32 stranded Silver plated copper alloy conductor.
MFA insulation.
Nom. diameter : 0.40 mm
Assembly two cores
Nom. diameter : 0.80 mm
3- CORE (C)
AWG 32 stranded Silver plated copper alloy conductor.
MFA insulation.
Diameter : 0.40 +/- 0.03 mm

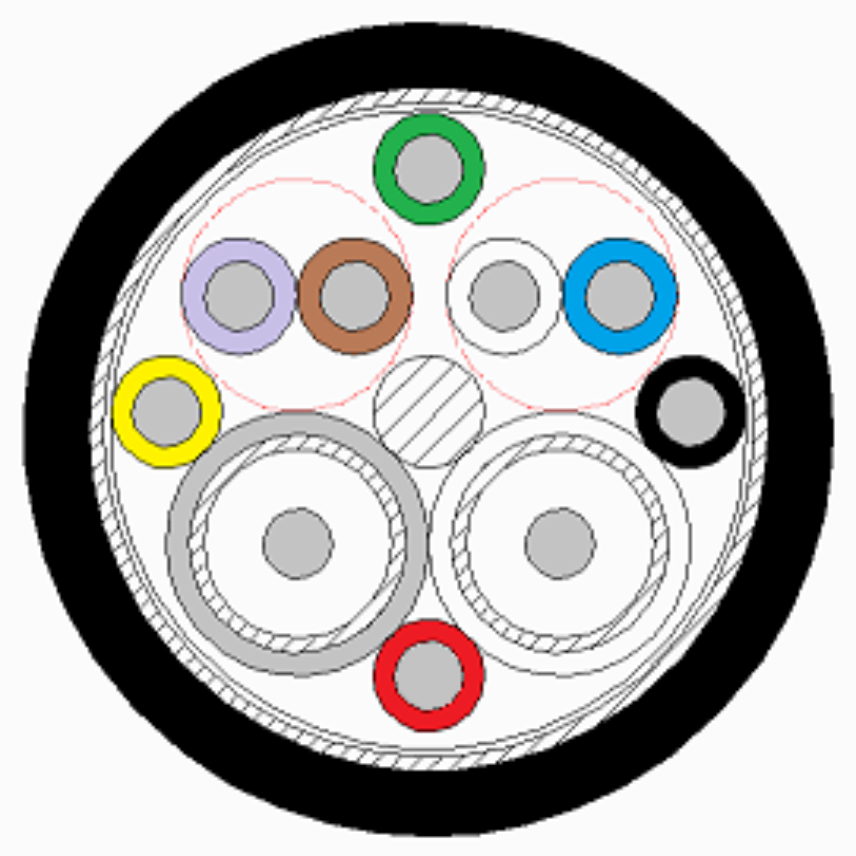

ASSEMBLY
PTFE central filler
+ 2 Cores (A) + 2 Cores (B) + 4 Cores (C) twisted.
4- PTFE Tape
5- SHIELD
AWG 44 silver plated copper spiral shield.
Min. coverage : 90%
Nominal diameter : 2.35 mm.
6- FEP Jacket
Nom. Diameter : 2.80 mm.
Max. Diameter : 3.00 mm
Mechanical Characteristics
Minimum static bending radius : 5 x Overall diameter
