Ultrasound cable assemblies
Very flexible cable with an extremely good mechanical behaviour.
Withstands miscellaneous sterilisation processes.
- Land ref. : Etude 132505
Beschreibung
Beschreibung
Normen
-
Produkt448-010-3-10; Nexans specification

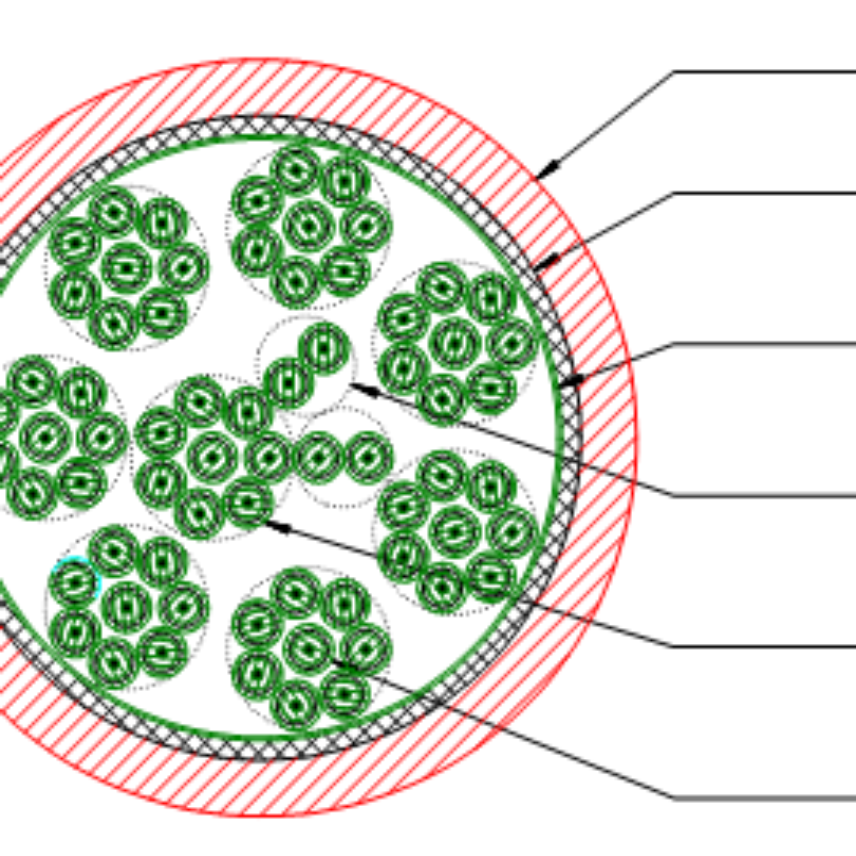

1- CORE (A)
AWG 38 silver plated copper wire.
FEP insulation.
Diameter : 0.30 +/- 0.02 mm
AWG 48 silver plated copper helicoidal screen
Nominal diameter : 0.36 mm
FEP jacket
Diameter : 0.46 +/- 0.03 mm
2- CORE (B)
8 Cores A twisted.
Nominal diameter : 1.40 mm
3- CORE (C)
2 Cores (A) twisted.
Nominal diameter : 0.90 mm
1 Kevlar strength member +
8 Cores (B) + 2 Cores (C) twisted.
Nominal diameter : 4.60 mm
4- PTFE Tape
Nominal diameter : 4.65 mm
5- SHIELD
AWG 40 tin plated copper braid.
85% coverage.
Nominal diameter : 5.00 mm
6- JACKET
Medical PVC
Diameter : 6.50 +/- 0.10 mm
Main Characteristics
Minimum bending radius : 5 x Overall diameter.
