Study 133528

1- CORE (A)

AWG 32 stranded Silver plated copper alloy conductor.
FEP insulation.
Diameter : 0.65 +/- 0.02 mm.
AWG 44 Silver plated copper spiral shield.
Nominal diameter : 0.75 mm.
FEP jacket
Diameter : 0.91 +/- 0.03 mm

2- CORE (B)

AWG 26 stranded Silver plated copper conductor.
FEP insulation.
Diameter : 0.91 +/- 0.05 mm

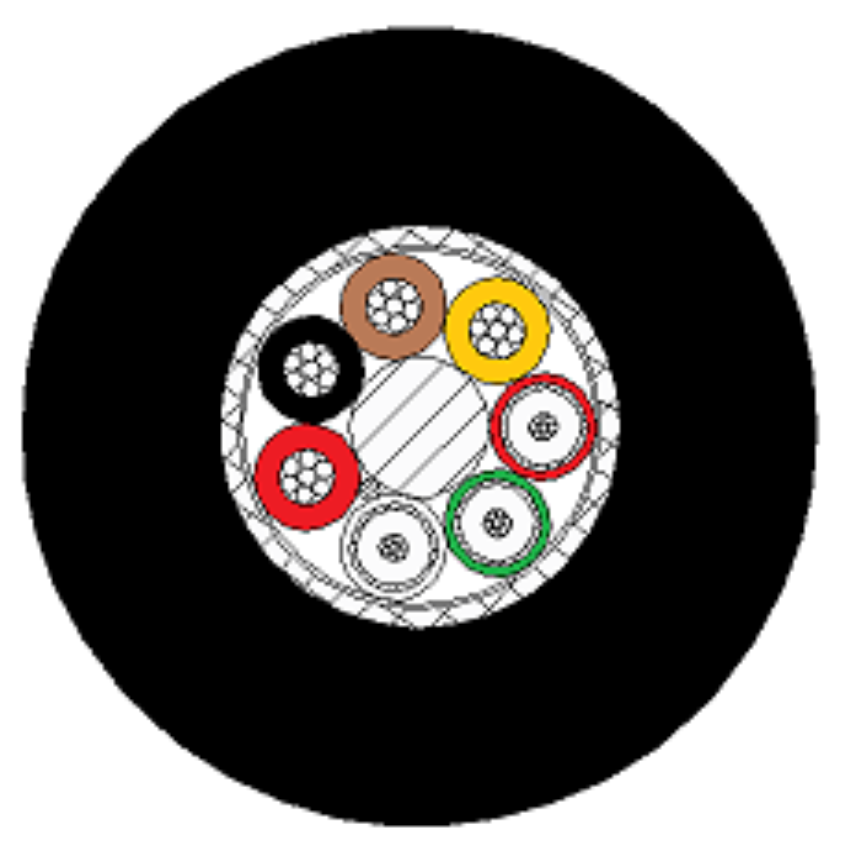

Assembly

1 Filler + 1 Kevlar member
Around 3 Cores (A) + 4 Cores (B) twisted.
Nominal diameter : 3.00 mm

3- PTFE Tape
Nominal diameter : 3.07 mm

4- SHIELD
AWG 40 Silver plated copper braid.
85% coverage.
Nominal diameter : 3.43 mm

5- JACKET
Medical PVC
Diameter : 6.80 +/- 0.15 mm

Main Characteristics
Minimum bending radius : 5 x Overall diameter.
