Ultrasound cable assemblies
Very flexible cable with an extremely good mechanical behaviour.
Withstands miscellaneous sterilisation processes.
- Produkt ref. : Etude 133359
- Land ref. : Etude 133359
Beschreibung
Beschreibung
Normen
-
Produkt448-010-3-10; Nexans specification
1- CORE (A)
AWG 42 Stranded silver plated copper alloy conductor.
MFA insulation
Diameter : 0.28 +/- 0.02 mm
AWG 48 silver plated copper
helicoidal screen.
Nom. diameter : 0.34 mm
FEP jacket
Diameter : 0.40 +/- 0.03 mm
2- CORE (B)
16 Cores A twisted
3- CORE (C)
32 AWG Stranded silver plated copper alloy conductor.
FEP insulation
Diameter : 0.40 +/- 0.03 mm
4- CORE (D)
4 Core C twisted
5- CORE (E)
4 Cores A twisted

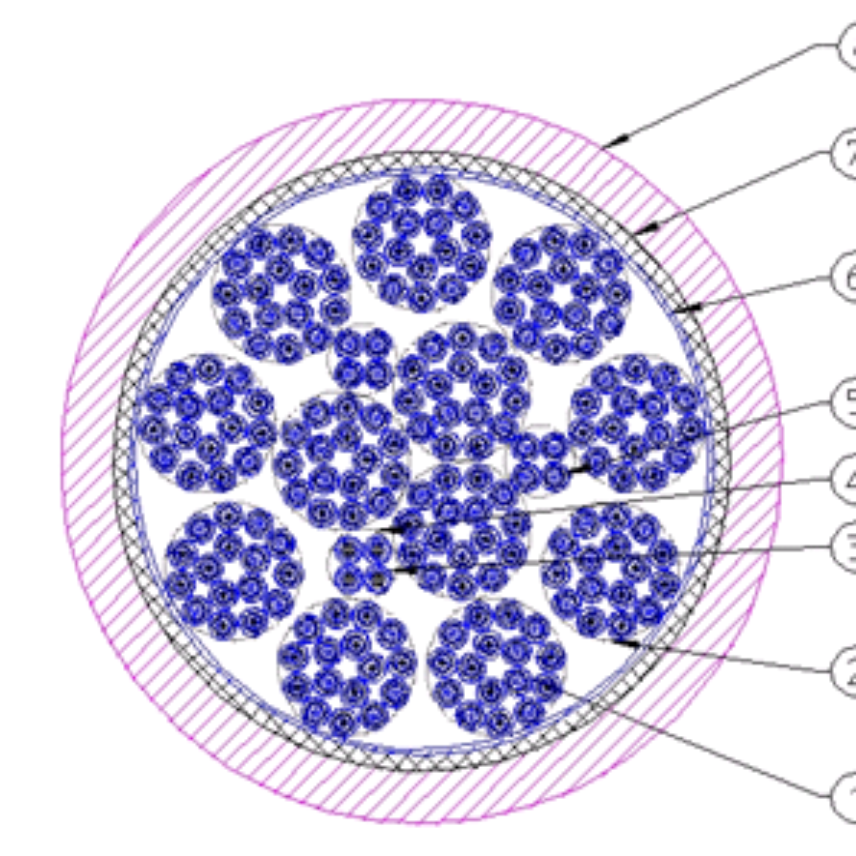

ASSEMBLY
12 Cores B + 1 Core D + 2 Cores E twisted
Nom. diameter : 7.34 mm
6- PTFE Tape
Nom. diameter : 7.40 mm
7- SHIELD
AWG 40 Tin plated copper braid
85% coverage, nom. diameter : 7.75 mm
8- JACKET
Medical PVC diameter : 9.05 +/- 0.30 mm
Mechanical Characteristics
Minimum static bending radius : 5 x Overall diameter.
