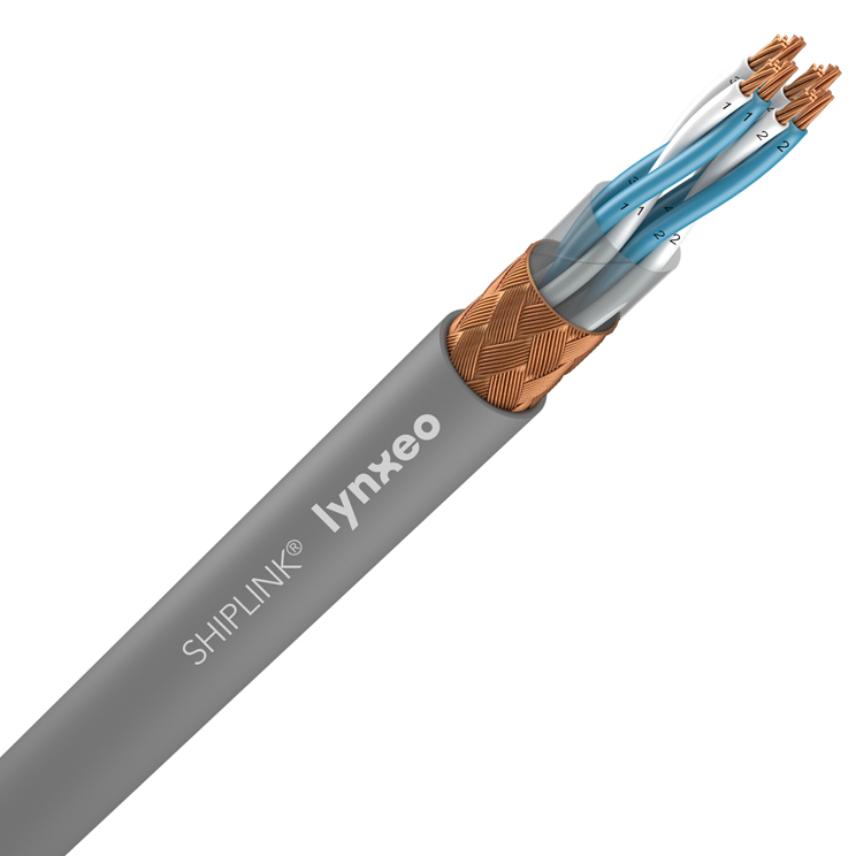

TCX® (C) 150/250(300) V
TCX (C) 150/250V 1P0.75
Product ref. 10170057
- 包装: Drum (100000米)
- 线对数: 1
- 三线组数: -
- 导线截面: 0.75 mm²
- 外径最小值: 6.9 mm
- Maximum outer diameter: 8.0 mm
- 近似重量: 72 kg/km
TCX (C) 150/250V 2P0.75
Product ref. 10170060
- 包装: Drum (100000米)
- 线对数: 2
- 三线组数: -
- 导线截面: 0.75 mm²
- 外径最小值: 7.6 mm
- Maximum outer diameter: 8.8 mm
- 近似重量: 97 kg/km
TCX (C) 150/250V 4P0.75
Product ref. 10170063
- 包装: Drum (100000米)
- 线对数: 4
- 三线组数: -
- 导线截面: 0.75 mm²
- 外径最小值: 12.0 mm
- Maximum outer diameter: 13.8 mm
- 近似重量: 186 kg/km
TCX (C) 150/250V 7P0.75
Product ref. 10170096
- 包装: Drum (100000米)
- 线对数: 7
- 三线组数: -
- 导线截面: 0.75 mm²
- 外径最小值: 14.0 mm
- Maximum outer diameter: 16.2 mm
- 近似重量: 237 kg/km
TCX (C) 150/250V 10P0.75
Product ref. 10170100
- 包装: Drum (100000米)
- 线对数: 10
- 三线组数: -
- 导线截面: 0.75 mm²
- 外径最小值: 16.9 mm
- Maximum outer diameter: 19.5 mm
- 近似重量: 385 kg/km
TCX (C) 150/250V 14P0.75
Product ref. 10170101
- 包装: Drum (100000米)
- 线对数: 14
- 三线组数: -
- 导线截面: 0.75 mm²
- 外径最小值: 18.8 mm
- Maximum outer diameter: 21.6 mm
- 近似重量: 505 kg/km
TCX (C) 150/250V 19P0.75
Product ref. 10170103
- 包装: Drum (100000米)
- 线对数: 19
- 三线组数: -
- 导线截面: 0.75 mm²
- 外径最小值: 21.3 mm
- Maximum outer diameter: 24.5 mm
- 近似重量: 641 kg/km
TCX (C) 150/250V 24P0.75
Product ref. 10170124
- 包装: Drum (100000米)
- 线对数: 24
- 三线组数: -
- 导线截面: 0.75 mm²
- 外径最小值: 23.5 mm
- Maximum outer diameter: 27.1 mm
- 近似重量: 757 kg/km
TCX (C) 150/250V 30P0.75
Product ref.
- 包装: Drum (100000米)
- 线对数: 30
- 三线组数: -
- 导线截面: 0.75 mm²
- 外径最小值: 25.5 mm
- Maximum outer diameter: 28.5 mm
- 近似重量: 904 kg/km
TCX (C) 150/250V 1T0.75
Product ref. 10170056
- 包装: Drum (100000米)
- 线对数: -
- 三线组数: 1
- 导线截面: 0.75 mm²
- 外径最小值: 7.1 mm
- Maximum outer diameter: 8.1 mm
- 近似重量: 78 kg/km
TCX (C) 150/250V 2T0.75
Product ref.
- 包装: Drum (100000米)
- 线对数: -
- 三线组数: 2
- 导线截面: 0.75 mm²
- 外径最小值: 11.0 mm
- Maximum outer diameter: 13.0 mm
- 近似重量: 150 kg/km
TCX (C) 150/250V 4T0.75
Product ref.
- 包装: Drum (100000米)
- 线对数: -
- 三线组数: 4
- 导线截面: 0.75 mm²
- 外径最小值: 12.8 mm
- Maximum outer diameter: 14.5 mm
- 近似重量: 225 kg/km
TCX (C) 150/250V 1P1.5
Product ref. 10170125
- 包装: Drum (100000米)
- 线对数: 1
- 三线组数: -
- 导线截面: 1.5 mm²
- 外径最小值: 8.0 mm
- Maximum outer diameter: 9.2 mm
- 近似重量: 97 kg/km
TCX (C) 150/250V 2P1.5
Product ref. 10170126
- 包装: Drum (100000米)
- 线对数: 2
- 三线组数: -
- 导线截面: 1.5 mm²
- 外径最小值: 9.4 mm
- Maximum outer diameter: 11.0 mm
- 近似重量: 149 kg/km
TCX (C) 150/250V 4P1.5
Product ref. 10170128
- 包装: Drum (100000米)
- 线对数: 4
- 三线组数: -
- 导线截面: 1.5 mm²
- 外径最小值: 14.2 mm
- Maximum outer diameter: 16.4 mm
- 近似重量: 323 kg/km
TCX (C) 150/250V 7P1.5
Product ref. 10281141
- 包装: Drum (100000米)
- 线对数: 7
- 三线组数: -
- 导线截面: 1.5 mm²
- 外径最小值: 17.0 mm
- Maximum outer diameter: 19.6 mm
- 近似重量: 474 kg/km
TCX (C) 150/250V 10P1.5
Product ref. 10284268
- 包装: Drum (100000米)
- 线对数: 10
- 三线组数: -
- 导线截面: 1.5 mm²
- 外径最小值: 19.8 mm
- Maximum outer diameter: 22.8 mm
- 近似重量: 637 kg/km
TCX (C) 150/250V 14P1.5
Product ref. 10210836
- 包装: Drum (100000米)
- 线对数: 14
- 三线组数: -
- 导线截面: 1.5 mm²
- 外径最小值: 22.0 mm
- Maximum outer diameter: 25.4 mm
- 近似重量: 835 kg/km
Description
Description
Standards
-
ProductIEC 60228
-
InstallationIEC 60092-350; IEC 60092-360; IEC 60092-376
-
TestIEC 60332-1; IEC 60332-3-22; IEC 60754-1; IEC 60754-2; IEC 61034
Application
TCX® (C) 150/250 V armoured twisted pair cables are used for telecommunication and instrumentation purposes. These cables show a low transfer impedance in low frequency and an effective screening in high frequency, making them very suitable for polluted electromagnetic surroundings. TCX® (C) cables are also selected where enhanced mechanical protection is required. Designed with halogen-free fire retardant materials, they provide optimum safety for people and maximal asset protection against all risks of fire.

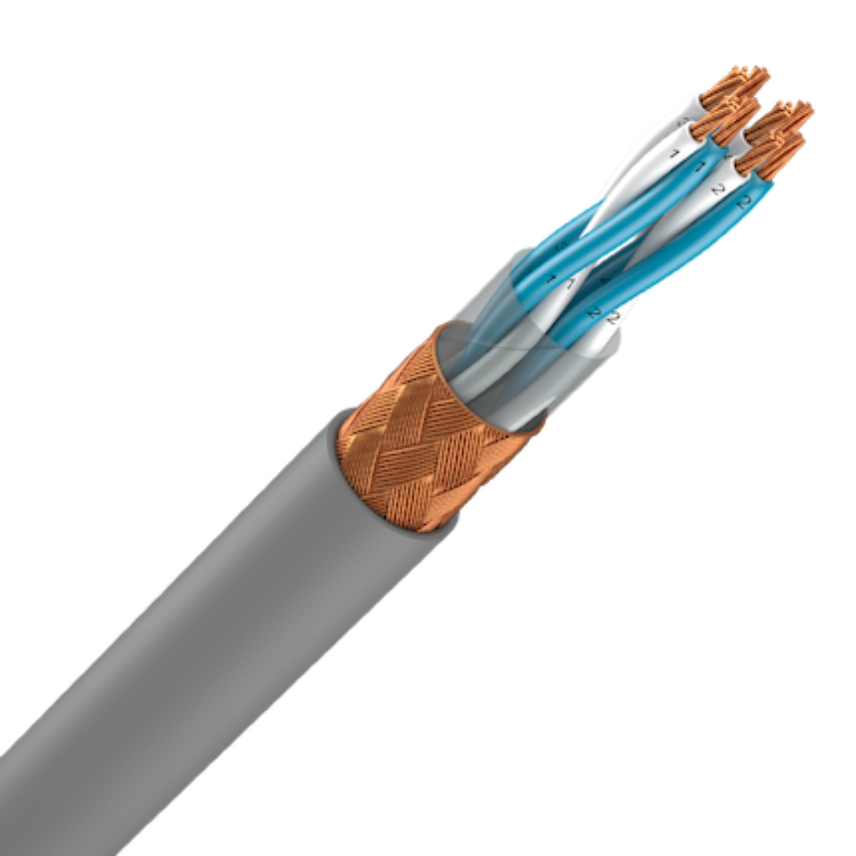

Design
1. Conductor
Stranded bare copper class 2
2. Insulation
XLPE(cross-linked polyethylene)
3. Assembling
Polyester tape
4. Armour
Bare copper braid
5. Outer sheath
Polyolefin SHF1
Colour : grey
Example of marking:
LYNXEO 279 TCX (C) Nbr of pairs/triads & cross-section 150/250V 90C IEC 60092-376 IEC 60332-3-22 Cat.A WW YYYY *CE* Manufacturing n°+ metric marking
Core identification
Pair: white / blue with printed pair number
Triad: white / blue / red with printed triad number
