EN 2266-008 DRP, DRT, DRQ
EN 2266-008 DRP, DRT, DRQ

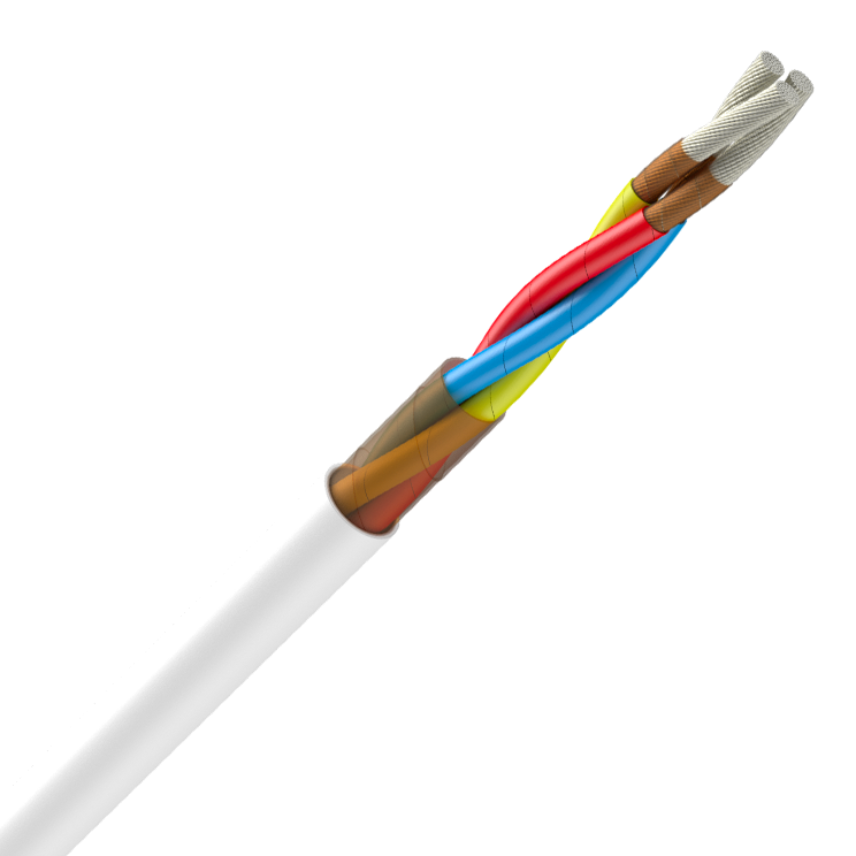

Designed for general Purpose Aircraft Wiring Applications
Multicore cables unshielded and jacketed
200 °C, Light Weight , UV
Arc Tracking Resistant
Description
Description
Standards
-
ProductEN 2267-009
-
TestprEN 3475
DESIGN CONSTRUCTION
CORES
2, 3 or 4 cores
EN 2267-009A
JACKET
Polyimide Tape
UV Laser Markable
Top coat
IDENTIFICATION
Cores :
Colours of marking :
White for Red and Green cores
Green for Blue, White and Yellow cores
Marking : EN DRA ** FRF++
Colour of marking : Green
Marking: DRx ++ FRF**
DRx = short designation (DRP, DRT, DRQ)
++ = AWG
FR = Country of Origin (FR = France)
F = Manufacturer (F = Lynxeo)
** = Year of production (i.e. 10 = 2010)
ELECTRICAL AND HIGH FREQUENCY PERFORMANCES
Voltage rating : 600 Volts RMS at sea level,
Usual Aerospace application are using 115 volts (Phase to neutral)
And 200 Volts (Phase to phase) 400 Hz AC or 29 Volts DC.
Maximum operating frequency: 2000Hz
Identification
| Cores : | |
| Colours of marking | : White for Red and Green cores |
| Green for Blue, White and Yellow cores | |
| Marking | : EN DRA ** FRF++ |
| Jacket : | |
| Colour of marking | : Green |
| Marking |
: DRx ++ FRF** |
| DRx = short designation (DRP, DRT, DRQ) | |
|
++ = AWG ** = Year of manufacturing (ie 10 = 2010) |
Characteristics
Characteristics
结构特性
结构特性
颜色
-
导体材料
-
芯线标记
Red, Blue
护套材料
-
护套颜色
-
导体数量
-
Size code
-
尺寸特性
尺寸特性
Maximum outer diameter
- mm
标称外径
- mm
芯线数
-
最大重量
- g/m
标称重量
- g/m
电气特性
电气特性
最大工作频率
- MHz
20°C时最大直流电阻
- Ohm/100m
20°C时导体的最大直流电阻 (Ohm/km)
-
Operating voltage between phases
- V
Operating voltage between phase and neutral
- V
机械特性
机械特性
防刮擦
-
使用特性
使用特性
耐油
Very good resistance to aircraft fluids
Arc traking resistant
是
符合RoHS
-
操作温度范围
-55 ... 200 °C
