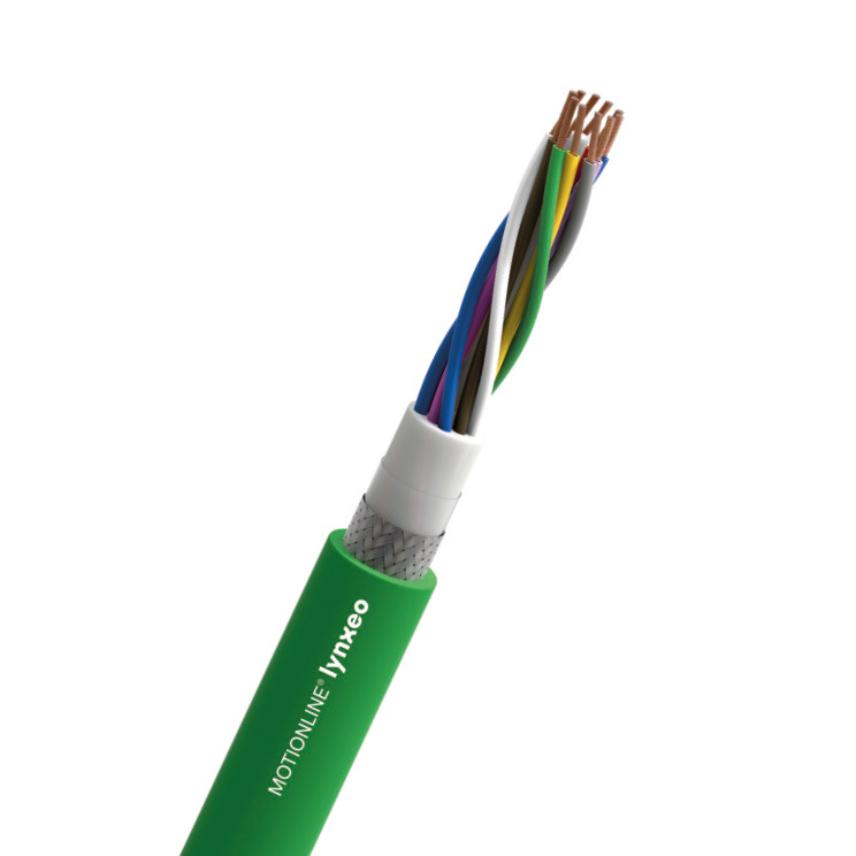

MEASURING SYSTEM CABLES ACC. TO SEW® STANDARD
MEASURING SYSTEM CABLES ACC. TO SEW® STANDARD

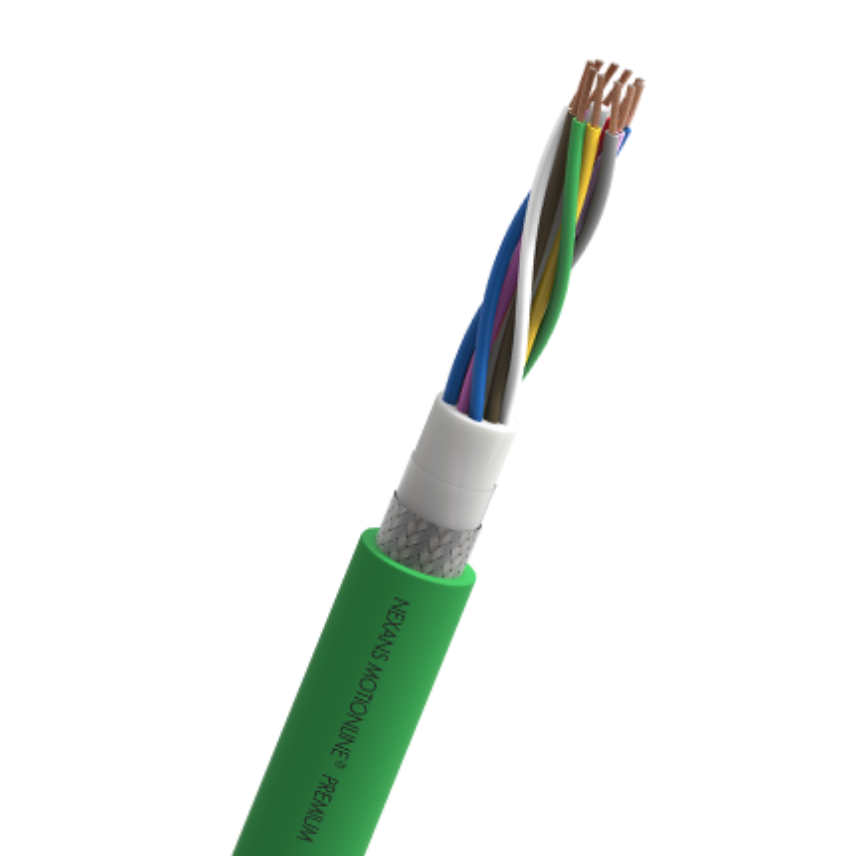

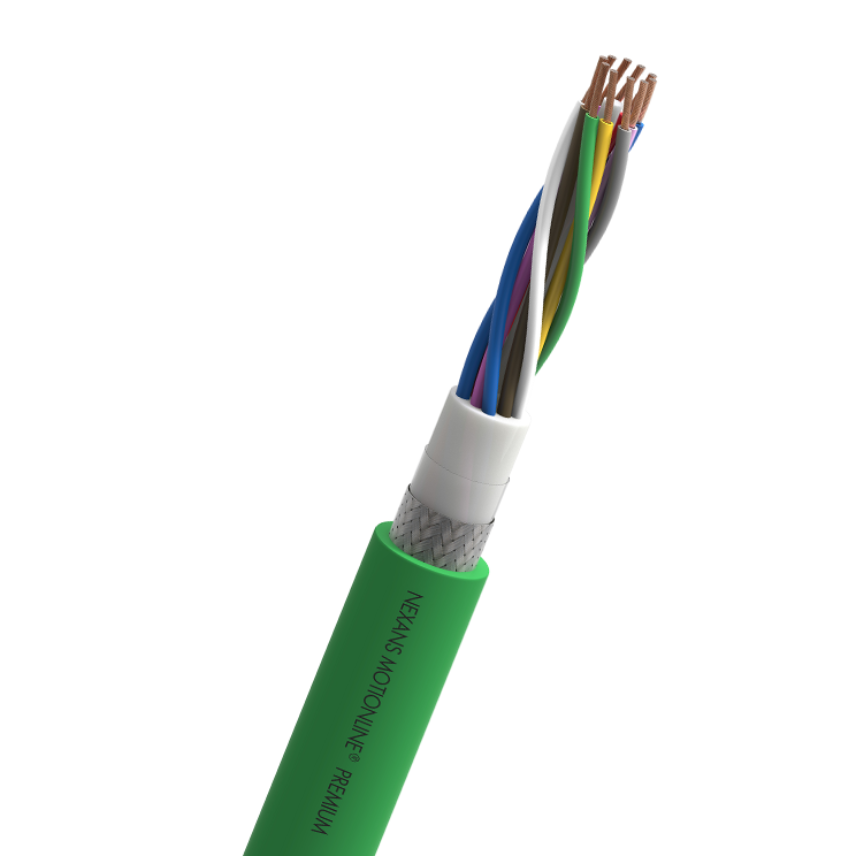

Measuring system cables for extremely dynamic applications. MOTIONLINE® PREMIUM
更多内容MEASURING SYSTEM CABLES SEW® STANDARD (5x2x0,25)C
Product ref. 49326673
- 包装: Drum (1000米)
- 结构类型: (5x2x0,25)C
- 铜含量: 52 kg/km
- 近似重量: 90 kg/km
- 外径: 9 mm
MEASURING SYSTEM CABLES SEW® STANDARD (6x2x0,25)C
Product ref. 49329073
- 包装: Drum (1000米)
- 结构类型: (6x2x0,25)C
- 铜含量: 59 kg/km
- 近似重量: 101 kg/km
- 外径: 9.3 mm
MEASURING SYSTEM CABLES SEW® STANDARD (5x2x0,25)C inner jacket
Product ref. 49326671
- 包装: Drum (1000米)
- 结构类型: (5x2x0,25)C
- 铜含量: 53 kg/km
- 近似重量: 114 kg/km
- 外径: 9.8 mm
MEASURING SYSTEM CABLES SEW® STANDARD (6x2x0,25)C inner jacket
Product ref. 49329071
- 包装: Drum (1000米)
- 结构类型: (6x2x0,25)C
- 铜含量: 60 kg/km
- 近似重量: 124 kg/km
- 外径: 10.1 mm
Description
Description
Standards
-
ProductUL and CSA approval
For extemely dynamic applications; PUR Jacket, screened, inner jacket, resistant to oils and coolants, notch resistant, flame retardant, resistant to hydrolysis and microbes, PVC- and halogen-free.
Characteristics
Characteristics
结构特性
结构特性
导体材料
Bending-resistant conductor with tinned copper wires
绝缘
TPM with very low capacitance
绝缘色
See Tab
内护套
TPE compound, optimized for drag chain use
屏蔽
Tinned copper braid, coverage ≥ 80%
外护套
PUR
护套颜色
Green RAL 6018
无卤
是
电气特性
电气特性
Rated Voltage Uo/U
30 V
测试电压
300 V
机械特性
机械特性
弯曲循环
5 Mio.
速度
300 m/min
Maximum acceleration
50 m/s²
使用特性
使用特性
应用类型
动态
最小弯曲半径 - 动态
7.5 (xD)
操作温度范围
-30 ... 80 °C
存储温度范围
-40 ... 80 °C
阻燃 - 火焰
IEC 60332-1-2; UL 1581 FT1
耐油
DIN EN 50363-10-2 & DIN EN 60811-404
