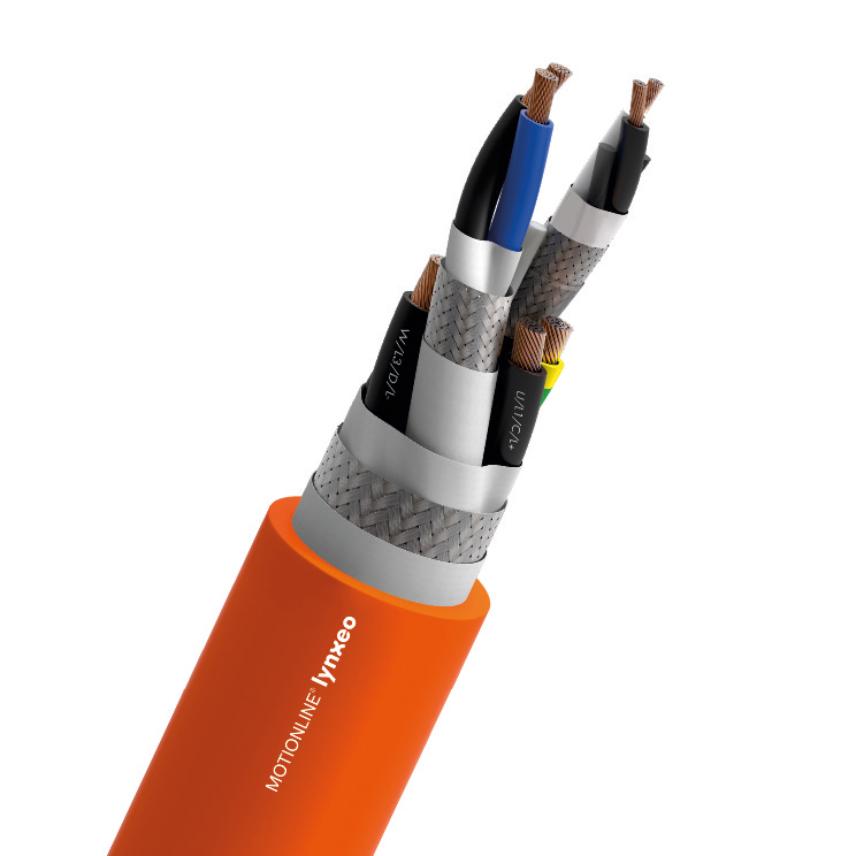

MOTIONLINE® PREMIUM HYBRID CABLES ACC. TO SICK HIPERFACE DSL® STANDARD PUR

Hybrid cables for servo motors for extremely dynamic applications; PUR Jacket; screened, resistant to oils and coolants, notch resistant, flame retardant, resistant to hydrolysis and microbes, PVC- and halogen-free.

Design

Conductor
Bare copper
Core insulation
Polyolefine
Core stranding
Power cores & control pairs stranded with fillers
Core identification
DSL: Blue - White
Signal: Black num.
5 + Black num. 6
Power: Black num.
1-3 + Y/G
Screen
Overall screen:
Tinned copper braid,
coverage ≥ 85%
Signal screen:
Tinned copper braid,
coverage ≥85%
Jacket
PUR
Colour: Orange
(similiar RAL 2003)
