RE-2Y(St)YSWAY - fl OS Armoured LSLH
RE-2Y(St)YSWAY - fl OS Armoured LSLH
- Intrumentation cables 300 V
- Overall screen (OS)
- Low smoke, low halogen (LSLH)
- Oil resistant

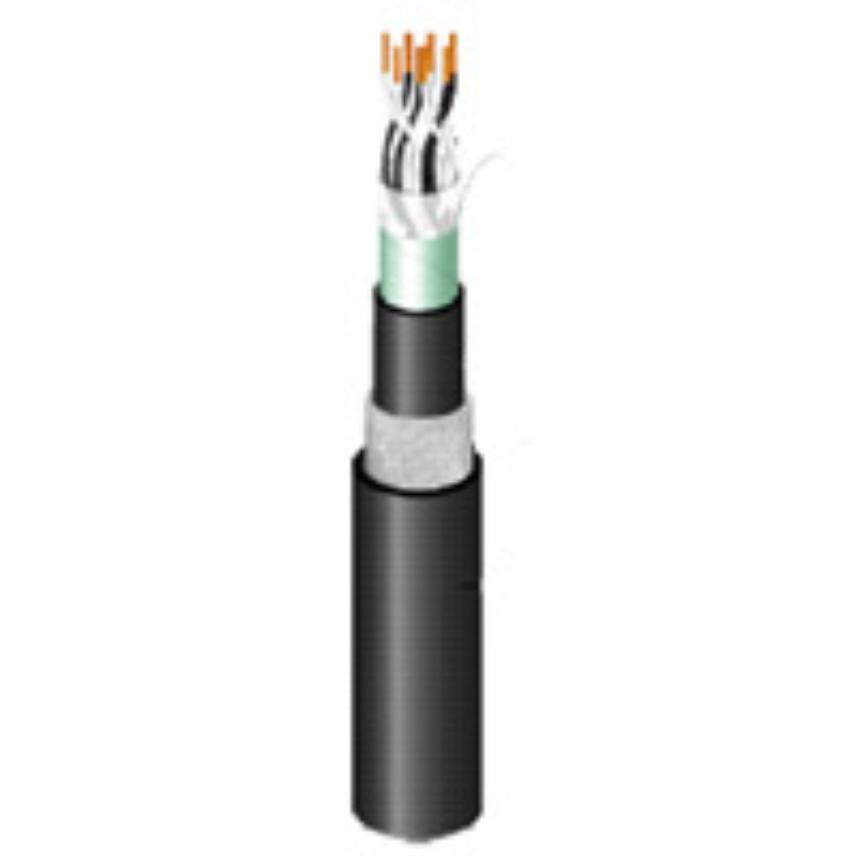

RE-2Y(St)YSWAY - fl OS Armoured LSLH 1x2x0.5
Product ref. 10098167
- Packaging: Cut to length (m)
- Sheath colour: 검은색
- Number of pairs: 1
- 도체 단면적: 0.5 mm²
RE-2Y(St)YSWAY - fl OS Armoured LSLH 2x2x0.5
Product ref. 10201218
- Packaging: Cut to length (m)
- Sheath colour: 검은색
- Number of pairs: 2
- 도체 단면적: 0.5 mm²
RE-2Y(St)YSWAY - fl OS Armoured LSLH 4x2x0.5
Product ref. 10098169
- Packaging: Cut to length (m)
- Sheath colour: 검은색
- Number of pairs: 4
- 도체 단면적: 0.5 mm²
RE-2Y(St)YSWAY - fl OS Armoured LSLH 8x2x0.5
Product ref. 10098113
- Packaging: Cut to length (m)
- Sheath colour: 검은색
- Number of pairs: 8
- 도체 단면적: 0.5 mm²
RE-2Y(St)YSWAY - fl OS Armoured LSLH 12x2x0.5
Product ref. 10098174
- Packaging: Cut to length (m)
- Sheath colour: 검은색
- Number of pairs: 12
- 도체 단면적: 0.5 mm²
RE-2Y(St)YSWAY - fl OS Armoured LSLH 16x2x0.5
Product ref. 10098175
- Packaging: Cut to length (m)
- Sheath colour: 검은색
- Number of pairs: 16
- 도체 단면적: 0.5 mm²
RE-2Y(St)YSWAY - fl OS Armoured LSLH 20x2x0.5
Product ref. 10098176
- Packaging: Cut to length (m)
- Sheath colour: 검은색
- Number of pairs: 20
- 도체 단면적: 0.5 mm²
RE-2Y(St)YSWAY - fl OS Armoured LSLH 24x2x0.5
Product ref. 10098177
- Packaging: Cut to length (m)
- Sheath colour: 검은색
- Number of pairs: 24
- 도체 단면적: 0.5 mm²
RE-2Y(St)YSWAY - fl OS Armoured LSLH 1x2x0.75
Product ref. 10098178
- Packaging: Cut to length (m)
- Sheath colour: 검은색
- Number of pairs: 1
- 도체 단면적: 0.75 mm²
RE-2Y(St)YSWAY - fl OS Armoured LSLH 1x2x0.75
Product ref. 10101849
- Packaging: Cut to length (m)
- Sheath colour: 파란색
- Number of pairs: 1
- 도체 단면적: 0.75 mm²
RE-2Y(St)YSWAY - fl OS Armoured LSLH 2x2x0.75
Product ref. 10201219
- Packaging: Cut to length (m)
- Sheath colour: 검은색
- Number of pairs: 2
- 도체 단면적: 0.75 mm²
RE-2Y(St)YSWAY - fl OS Armoured LSLH 2x2x0.75
Product ref. 10201223
- Packaging: Cut to length (m)
- Sheath colour: 파란색
- Number of pairs: 2
- 도체 단면적: 0.75 mm²
RE-2Y(St)YSWAY - fl OS Armoured LSLH 4x2x0.75
Product ref. 10098180
- Packaging: Cut to length (m)
- Sheath colour: 검은색
- Number of pairs: 4
- 도체 단면적: 0.75 mm²
RE-2Y(St)YSWAY - fl OS Armoured LSLH 8x2x0.75
Product ref. 10098181
- Packaging: Cut to length (m)
- Sheath colour: 검은색
- Number of pairs: 8
- 도체 단면적: 0.75 mm²
RE-2Y(St)YSWAY - fl OS Armoured LSLH 12x2x0.75
Product ref. 10098182
- Packaging: Cut to length (m)
- Sheath colour: 검은색
- Number of pairs: 12
- 도체 단면적: 0.75 mm²
RE-2Y(St)YSWAY - fl OS Armoured LSLH 16x2x0.75
Product ref. 10098183
- Packaging: Cut to length (m)
- Sheath colour: 검은색
- Number of pairs: 16
- 도체 단면적: 0.75 mm²
RE-2Y(St)YSWAY - fl OS Armoured LSLH 20x2x0.75
Product ref. 10098184
- Packaging: Cut to length (m)
- Sheath colour: 검은색
- Number of pairs: 20
- 도체 단면적: 0.75 mm²
RE-2Y(St)YSWAY - fl OS Armoured LSLH 24x2x0.75
Product ref. 10098185
- Packaging: Cut to length (m)
- Sheath colour: 검은색
- Number of pairs: 24
- 도체 단면적: 0.75 mm²
RE-2Y(St)YSWAY - fl OS Armoured LSLH 1x2x1.34
Product ref. 10098186
- Packaging: Cut to length (m)
- Sheath colour: 검은색
- Number of pairs: 1
- 도체 단면적: 1.34 mm²
RE-2Y(St)YSWAY - fl OS Armoured LSLH 1x2x1.34
Product ref. 10101851
- Packaging: Cut to length (m)
- Sheath colour: 파란색
- Number of pairs: 1
- 도체 단면적: 1.34 mm²
RE-2Y(St)YSWAY - fl OS Armoured LSLH 2x2x1.34
Product ref. 10201220
- Packaging: Cut to length (m)
- Sheath colour: 검은색
- Number of pairs: 2
- 도체 단면적: 1.34 mm²
RE-2Y(St)YSWAY - fl OS Armoured LSLH 2x2x1.34
Product ref. 10201244
- Packaging: Cut to length (m)
- Sheath colour: 파란색
- Number of pairs: 2
- 도체 단면적: 1.34 mm²
RE-2Y(St)YSWAY - fl OS Armoured LSLH 4x2x1.34
Product ref. 10098188
- Packaging: Cut to length (m)
- Sheath colour: 검은색
- Number of pairs: 4
- 도체 단면적: 1.34 mm²
RE-2Y(St)YSWAY - fl OS Armoured LSLH 4x2x1.34
Product ref. 10101853
- Packaging: Cut to length (m)
- Sheath colour: 파란색
- Number of pairs: 4
- 도체 단면적: 1.34 mm²
RE-2Y(St)YSWAY - fl OS Armoured LSLH 8x2x1.34
Product ref. 10098189
- Packaging: Cut to length (m)
- Sheath colour: 검은색
- Number of pairs: 8
- 도체 단면적: 1.34 mm²
RE-2Y(St)YSWAY - fl OS Armoured LSLH 12x2x1.34
Product ref. 10098190
- Packaging: Cut to length (m)
- Sheath colour: 검은색
- Number of pairs: 12
- 도체 단면적: 1.34 mm²
RE-2Y(St)YSWAY - fl OS Armoured LSLH 16x2x1.34
Product ref. 10098191
- Packaging: Cut to length (m)
- Sheath colour: 검은색
- Number of pairs: 16
- 도체 단면적: 1.34 mm²
RE-2Y(St)YSWAY - fl OS Armoured LSLH 20x2x1.34
Product ref. 10098192
- Packaging: Cut to length (m)
- Sheath colour: 검은색
- Number of pairs: 20
- 도체 단면적: 1.34 mm²
RE-2Y(St)YSWAY - fl OS Armoured LSLH 24x2x1.34
Product ref. 10098193
- Packaging: Cut to length (m)
- Sheath colour: 검은색
- Number of pairs: 24
- 도체 단면적: 1.34 mm²
Description
Description
Standards
-
ProductIEC 60228
-
TestIEC 60332-3-22 Cat.A; IEC 60754; IEC 61034
Applications
These cables are intended for transmission of analogue and digital signals. They allow transmission over long distances at high pulse rates. These cables are used in industrial installations (refineries, chemical plants, etc...) where there is a potential risk of mechanical damage.
Design
Conductor:
Stranded bare copper (class 2)
Insulation:
Polyethylene (PE)
Overall screen:
Tinned copper drain wire
Aluminium/polyester tape
Inner sheath:
Polyvinyl chloride (PVC)
Colour: black
Armour:
Galvanized steel wires (SWA)
Outer sheath:
Polyvinyl chloride (PVC)
Special low smoke, low halogen (LSLH)
Colour: black or blue
Fire retardant: IEC 60332-3-22(A), limiting oxygen index > 30 as par ASTM D 2863
Low smoke: IEC 61034-2, transmittance > 40 %
Low halogen: IEC 60754-1 HCL < 6 %
Core identification
Pair: Black/white
Triple:Black/white/red
For multipair White core printed with pair number
Marking
NEXANS 279 YYYY RE - 2Y(St)YSWAY - fl LSLH 300V Nber of pairs & cross-section IEC 60332-3-22(A) + metric marking
Désignation
RE: Instrumentation cable
2Y: Polyethylene insulation
(St): Collective screen
Y: PVC inner sheath
SWA: Galvanized steel wires
Y: PVC outer sheath
fl: Reduced flame propagation
LSLH: Low emission of smoke and halogens
Electrical characteristics at 20°C
Core identification for 2 pair cables
Characteristics
Characteristics
구조적 특성
구조적 특성
치수
치수
전기적 특성
전기적 특성
기계적 특성
기계적 특성
사용 특성
사용 특성
Resources
Resources
Selling & delivery Information
Minimum bending radius:
10 x outer diameter
To be doubled during laying operations
2 pair cables are assembled as a quad (black and white cores both printed with pair number)
