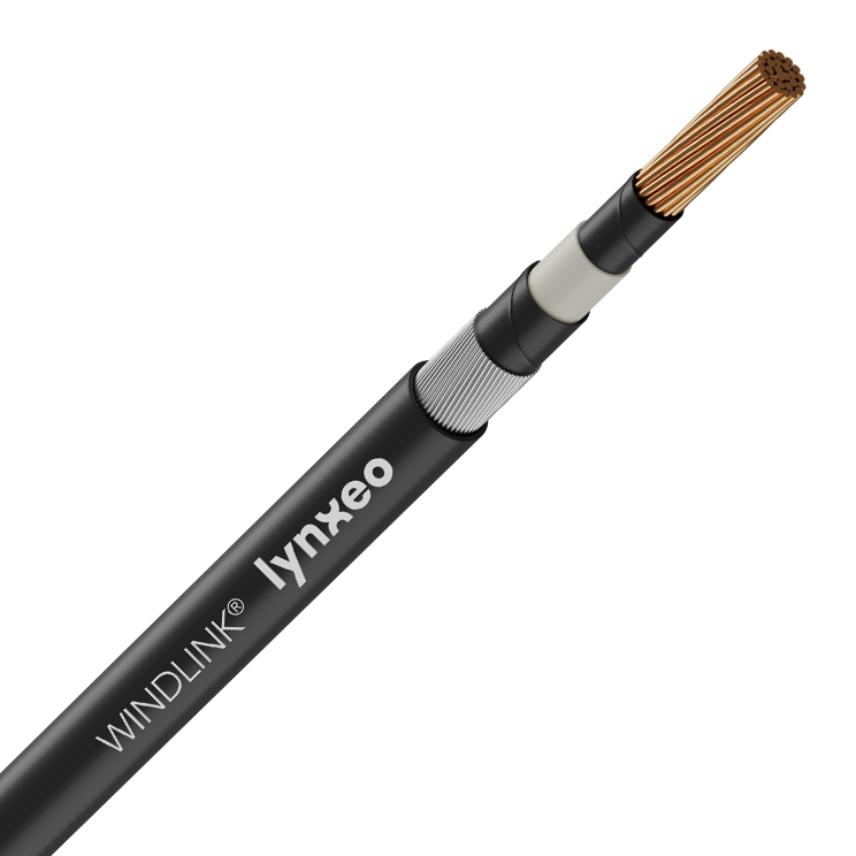

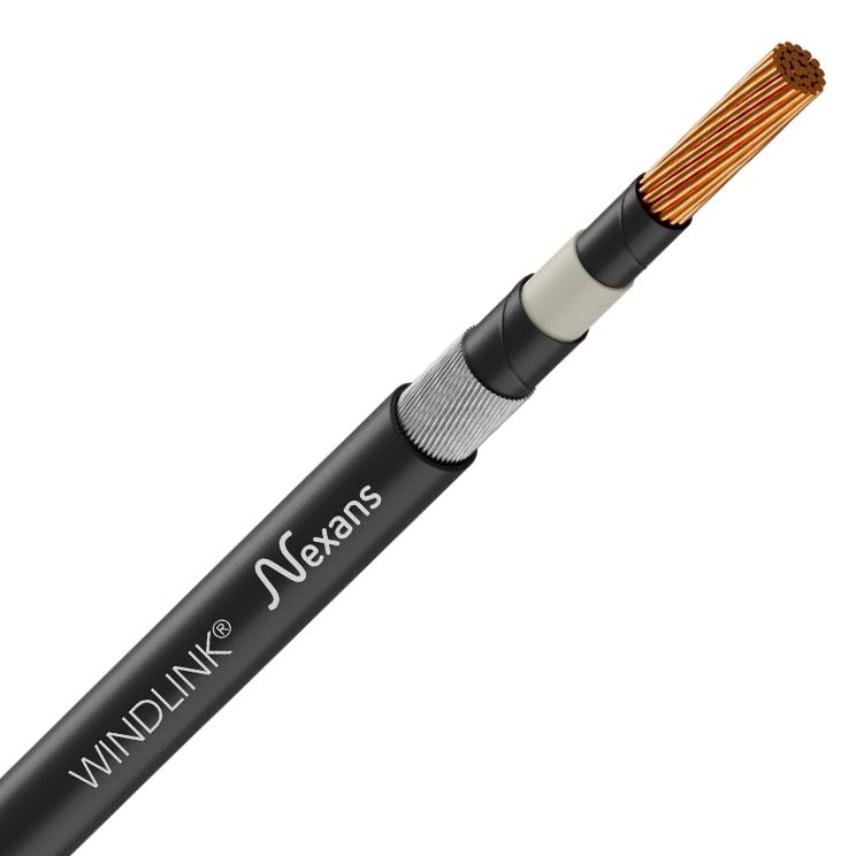

WINDLINK® MV-RS (N)TSCGEHXOE 66kV (72kV)
(N)TSCGEHXOE 3x120+3x120/3 36/60(72)kV
Product ref.
- Insulation sheath thickness: 12.0 mm
- Nominal outer sheath thickness: 3.0 mm
- Minimum cable diameter: 102.5 mm
- Maximum cable diameter: 105.5 mm
- 무게(근사치): 14050 kg/km
- Resistance of inner conductor (DC): 0.205 Ohm/km
- Operating capacitances: .16 mF/km
- Permissible current rating in open air: 339 A
(N)TSCGEHXOE 3x150+3x150/3 36/60(72)kV
Product ref.
- Insulation sheath thickness: 11.5 mm
- Nominal outer sheath thickness: 3.0 mm
- Minimum cable diameter: 97 mm
- Maximum cable diameter: 104 mm
- 무게(근사치): 14300 kg/km
- Resistance of inner conductor (DC): 0.165 Ohm/km
- Operating capacitances: .16 mF/km
- Permissible current rating in open air: 399 A
(N)TSCGEHXOE 3x240+3x240/3 36/60(72)kV
Product ref.
- Insulation sheath thickness: 10.0 mm
- Nominal outer sheath thickness: 4.0 mm
- Minimum cable diameter: 107 mm
- Maximum cable diameter: 114 mm
- 무게(근사치): 18700 kg/km
- Resistance of inner conductor (DC): 0.102 Ohm/km
- Operating capacitances: .198 mF/km
- Permissible current rating in open air: 538 A
(N)TSCGEHXOE 3x95+3x95/3 36/60(72)kV
Product ref.
- Insulation sheath thickness: 12.0 mm
- Nominal outer sheath thickness: 3.0 mm
- Minimum cable diameter: 94 mm
- Maximum cable diameter: 96.5 mm
- 무게(근사치): 11860 kg/km
- Resistance of inner conductor (DC): 0.263 Ohm/km
- Operating capacitances: .136 mF/km
- Permissible current rating in open air: 298 A
Description
Description
Standards
-
ProductDIN VDE 0207 part 20; DIN VDE 0250 part 1; DIN VDE 0250 part 813; IEC 60228
Application
Medium-voltage trailing cable WINDLINK® MV-RS (N)TMCGCHXOE in one-sheath design was developed for special application conditions in wind turbines. The construction is torsion resistant by suspension lengths of 100 m. These cables are specified for medium mechanical stress and for operation under permanent influence of seawater and outdoor use.
Resistance to:
- permanent movement
- permanent vibrations
- compressive stress
- oil
- flame-retardant
- temporary influence of seawater
- weather
- ozone influence
- suitable for torsion up to +/- 80 °/meter, test 2000 cycles
Characteristics
Characteristics
구조적 특성
구조적 특성
구조
3x95+3x95/3
도체 재료
Bare copper class 5
Material of the inner semi-conductor
-
절연
-
Material of the external semi-conductor
-
Insulation colour
-
내피
-
피복
-
Halogen free
IEC 60754
치수
치수
Conductor diameter (mm)
-
Inner sheath thickness
- mm
전기적 특성
전기적 특성
Max. Electrical Resistance AC 60Hz 70°C
- Ohm/km
Max. Electrical Resistance AC 60Hz 90°C
- Ohm/km
Inductive reactance
- Ohm/km
Permissible short circuit current
- kA
Operating voltage - range
- kV
기계적 특성
기계적 특성
Maximum tensile strength
- N/mm2
Torsion stress
- °/m
Abrasion resistance
-
사용 특성
사용 특성
Gases corrosivity
-
난연
IEC 60332-1-2
Oil resistance
-
Ozone resistance
-
Minimum Bending Radius during installation
- (xD)
Minimum bending radius, static (XD)
-
Weather resistance
-
연기밀도
-
Resources
Resources
Selling & delivery Information
Marking
Inkjet-marking (WS), e.g.:
WINDLINK® MV-RS (N)TMCGCXOE 1x185/25 20/35 kV I NEXANS I week/year
