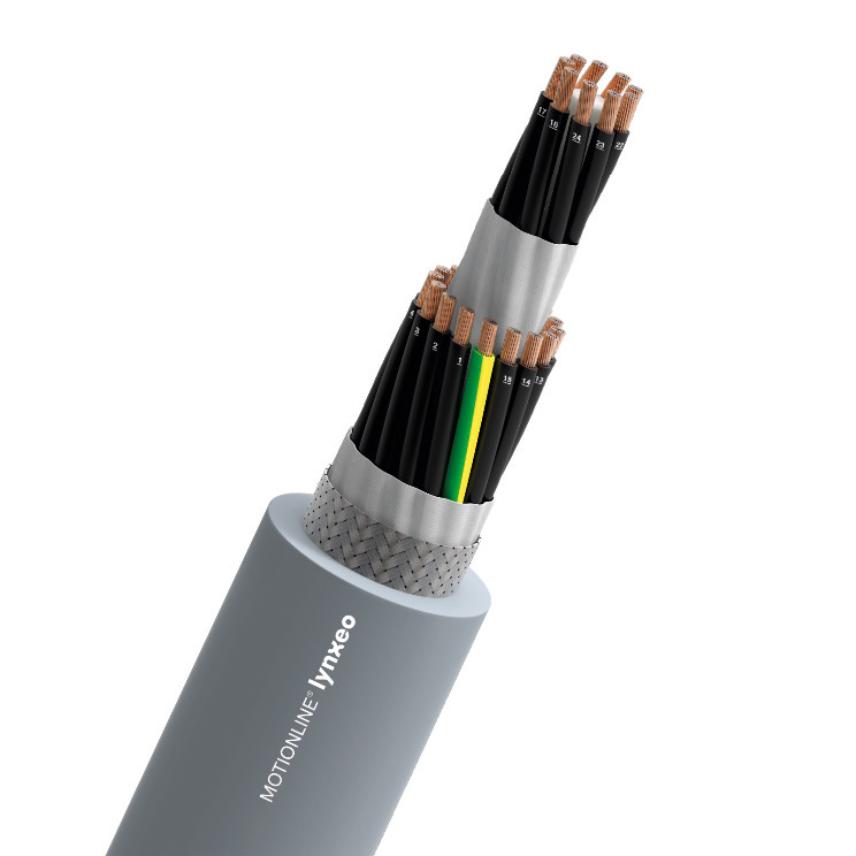

MOTIONLINE® CONTROL 90 C PVC
MOTIONLINE® CONTROL 90 C PVC
Control cables for high dynamic drag chain in industrial applications. Shielded, PVC jacket, oil resistant, flame retardant.
Read moreCONTROL 90 C PVC (12G0,5)
Product ref. 10580610
- Nominal outer diameter: 8.4 mm
- 무게(근사치): 120 kg/km
- Copper content: 86 kg/km
CONTROL 90 C PVC (12G0,75)
Product ref. 10580739
- Nominal outer diameter: 9.3 mm
- 무게(근사치): 156 kg/km
- Copper content: 119 kg/km
CONTROL 90 C PVC (12G1)
Product ref. 10580587
- Nominal outer diameter: 10.0 mm
- 무게(근사치): 20 kg/km
- Copper content: 152 kg/km
CONTROL 90 C PVC (12G1,5)
Product ref. 10580573
- Nominal outer diameter: 11.3 mm
- 무게(근사치): 276 kg/km
- Copper content: 213 kg/km
CONTROL 90 C PVC (12G2,5)
Product ref. 10580745
- Nominal outer diameter: 13.6 mm
- 무게(근사치): 515 kg/km
- Copper content: 350 kg/km
CONTROL 90 C PVC (18G0,5)
Product ref. 10580608
- Nominal outer diameter: 9.6 mm
- 무게(근사치): 170 kg/km
- Copper content: 121 kg/km
CONTROL 90 C PVC (18G0,75)
Product ref. 10580740
- Nominal outer diameter: 10.7 mm
- 무게(근사치): 250 kg/km
- Copper content: 169 kg/km
CONTROL 90 C PVC (18G1)
Product ref. 10580586
- Nominal outer diameter: 11.6 mm
- 무게(근사치): 300 kg/km
- Copper content: 223 kg/km
CONTROL 90 C PVC (25G0,5)
Product ref. 10580606
- Nominal outer diameter: 11.3 mm
- 무게(근사치): 260 kg/km
- Copper content: 169 kg/km
CONTROL 90 C PVC (25G0,75)
Product ref. 10580741
- Nominal outer diameter: 13.0 mm
- 무게(근사치): 335 kg/km
- Copper content: 236 kg/km
CONTROL 90 C PVC (25G1)
Product ref. 10580584
- Nominal outer diameter: 14.5 mm
- 무게(근사치): 420 kg/km
- Copper content: 304 kg/km
CONTROL 90 C PVC (2x0,5)
Product ref. 10580627
- Nominal outer diameter: 5.2 mm
- 무게(근사치): 40 kg/km
- Copper content: 20 kg/km
CONTROL 90 C PVC (2x0,75)
Product ref. 10580737
- Nominal outer diameter: 5.7 mm
- 무게(근사치): 40 kg/km
- Copper content: 26 kg/km
CONTROL 90 C PVC (2x1)
Product ref. 10580598
- Nominal outer diameter: 6.0 mm
- 무게(근사치): 58 kg/km
- Copper content: 32 kg/km
CONTROL 90 C PVC (2x1,5)
Product ref. 10580582
- Nominal outer diameter: 6.6 mm
- 무게(근사치): 72 kg/km
- Copper content: 44 kg/km
CONTROL 90 C PVC (2x2,5)
Product ref. 10580744
- Nominal outer diameter: 7.6 mm
- 무게(근사치): 100 kg/km
- Copper content: 71 kg/km
CONTROL 90 C PVC (3G0,5)
Product ref. 10580625
- Nominal outer diameter: 5.5 mm
- 무게(근사치): 44 kg/km
- Copper content: 26 kg/km
CONTROL 90 C PVC (3G0,75)
Product ref. 10580738
- Nominal outer diameter: 6.0 mm
- 무게(근사치): 52 kg/km
- Copper content: 35 kg/km
CONTROL 90 C PVC (3G1)
Product ref. 10580596
- Nominal outer diameter: 6.3 mm
- 무게(근사치): 65 kg/km
- Copper content: 43 kg/km
CONTROL 90 C PVC (3G1,5)
Product ref. 10580580
- Nominal outer diameter: 7.0 mm
- 무게(근사치): 82 kg/km
- Copper content: 60 kg/km
CONTROL 90 C PVC (3G2,5)
Product ref. 10580571
- Nominal outer diameter: 8.1 mm
- 무게(근사치): 122 kg/km
- Copper content: 98 kg/km
CONTROL 90 C PVC (4G0,5)
Product ref. 10580623
- Nominal outer diameter: 5.8 mm
- 무게(근사치): 52 kg/km
- Copper content: 32 kg/km
CONTROL 90 C PVC (4G0,75)
Product ref. 10580604
- Nominal outer diameter: 6.4 mm
- 무게(근사치): 65 kg/km
- Copper content: 43 kg/km
CONTROL 90 C PVC (4G0,75) BK
Product ref. 10580708
- Nominal outer diameter: 6.4 mm
- 무게(근사치): 65 kg/km
- Copper content: 43 kg/km
CONTROL 90 C PVC (4G1)
Product ref. 10580595
- Nominal outer diameter: 6.8 mm
- 무게(근사치): 80 kg/km
- Copper content: 55 kg/km
CONTROL 90 C PVC (4G1,5)
Product ref. 10580578
- Nominal outer diameter: 7.5 mm
- 무게(근사치): 102 kg/km
- Copper content: 77 kg/km
CONTROL 90 C PVC (4G2,5)
Product ref. 10580569
- Nominal outer diameter: 8.8 mm
- 무게(근사치): 153 kg/km
- Copper content: 125 kg/km
CONTROL 90 C PVC (5G0,5)
Product ref. 10580621
- Nominal outer diameter: 6.2 mm
- 무게(근사치): 61 kg/km
- Copper content: 38 kg/km
CONTROL 90 C PVC (5G0,75)
Product ref. 10580602
- Nominal outer diameter: 6.9 mm
- 무게(근사치): 88 kg/km
- Copper content: 52 kg/km
CONTROL 90 C PVC (5G1)
Product ref. 10580593
- Nominal outer diameter: 7.3 mm
- 무게(근사치): 95 kg/km
- Copper content: 67 kg/km
CONTROL 90 C PVC (5G1,5)
Product ref. 10580577
- Nominal outer diameter: 8.2 mm
- 무게(근사치): 125 kg/km
- Copper content: 98 kg/km
CONTROL 90 C PVC (5G2,5)
Product ref. 10580568
- Nominal outer diameter: 9.6 mm
- 무게(근사치): 180 kg/km
- Copper content: 153 kg/km
CONTROL 90 C PVC (6G0,5)
Product ref. 10580620
- Nominal outer diameter: 6.6 mm
- 무게(근사치): 71 kg/km
- Copper content: 45 kg/km
CONTROL 90 C PVC (7G0,5)
Product ref. 10580614
- Nominal outer diameter: 7.1 mm
- 무게(근사치): 80 kg/km
- Copper content: 51 kg/km
CONTROL 90 C PVC (7G0,75)
Product ref. 10580600
- Nominal outer diameter: 7.9 mm
- 무게(근사치): 110 kg/km
- Copper content: 75 kg/km
CONTROL 90 C PVC (7G1)
Product ref. 10580591
- Nominal outer diameter: 8.5 mm
- 무게(근사치): 134 kg/km
- Copper content: 94 kg/km
CONTROL 90 C PVC (7G1,5)
Product ref. 10580575
- Nominal outer diameter: 9.5 mm
- 무게(근사치): 185 kg/km
- Copper content: 133 kg/km
CONTROL 90 C PVC (7G2,5)
Product ref. 10580566
- Nominal outer diameter: 11.1 mm
- 무게(근사치): 260 kg/km
- Copper content: 209 kg/km
CONTROL 90 C PVC (8G0,5)
Product ref. 10580612
- Nominal outer diameter: 7.7 mm
- 무게(근사치): 90 kg/km
- Copper content: 57 kg/km
CONTROL 90 C PVC (8G1)
Product ref. 10580589
- Nominal outer diameter: 9.2 mm
- 무게(근사치): 150 kg/km
- Copper content: 107 kg/km
Description
Description
Standards
-
ProductUL and CSA approval
UL recognised / CSA
UL AWM 90°C 1000V
CSA AWM I/II A/B 90°C 1000V
Oil Resistance
EN 50363-4-1
Flame Retardant
IEC 60332-1; FT1; UL1581
Design
Conductor
Bare copper, class 6
Core insulation
Polyolefin
Core stranding
Cores twisted in layer with fillers where needed
Core identification
Black numbered + GN/YE
Shield
Tinned coppe braid, coverage ≥ 80%
Jacket
PVC
Colour
Grey RAL 2003
