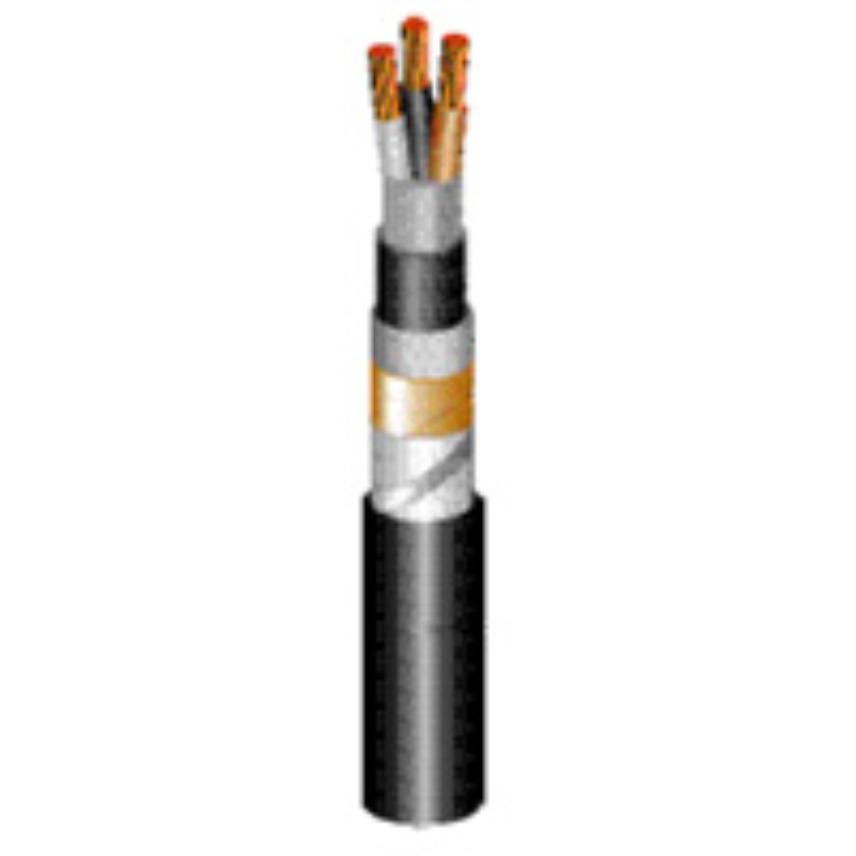

U-1000 (A)RGPFV RH C1 Fire retardant
U-1000 (A)RGPFV RH C1 Fire retardant
- 0.6/1kV Power & control cables
- XP C 32-111
- With lead cover
- Armoured (double steel tape: STA)
- Aliphatic and aromatic hydrocarbons resistant
- Classification AD8 and AG4
U 1000 RGPFV RH C1 2x1.5
Product ref. 10091243 - Country ref. 01095963
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Solid class 1
- With Green/Yellow core: No
- Number of cores: 2
- Conductor cross-section: 1.5 mm²
U 1000 RGPFV RH C1 2x2.5
Product ref. 10091303 - Country ref. 01096505
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Solid class 1
- With Green/Yellow core: No
- Number of cores: 2
- Conductor cross-section: 2.5 mm²
U-1000 RGPFV-RH C1 2x4
Product ref.
- Conductor material: Copper
- Conductor flexibility: Solid class 1
- With Green/Yellow core: No
- Number of cores: 2
- Conductor cross-section: 4 mm²
U-1000 RGPFV-RH C1 2x6
Product ref.
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 2
- Conductor cross-section: 6 mm²
U 1000 RGPFV RH C1 2x10
Product ref.
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 2
- Conductor cross-section: 10 mm²
U-1000 RGPFV-RH C1 2x16
Product ref.
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 2
- Conductor cross-section: 16 mm²
U 1000 RGPFV RH C1 2x25
Product ref.
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 2
- Conductor cross-section: 25 mm²
U-1000 ARGPFV-RH C1 2x35
Product ref.
- Conductor material: Aluminum
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 2
- Conductor cross-section: 35 mm²
U-1000 RGPFV RH C1 2x35
Product ref.
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 2
- Conductor cross-section: 35 mm²
U-1000 ARGPFV-RH C1 2x50
Product ref.
- Conductor material: Aluminum
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 2
- Conductor cross-section: 50 mm²
U-1000 RGPFV RH C1 2x50
Product ref.
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 2
- Conductor cross-section: 50 mm²
U 1000 ARGPFV RH C1 2x70
Product ref. 10120434
- Packaging: Cut to length (m)
- Conductor material: Aluminum
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 2
- Conductor cross-section: 70 mm²
U-1000 RGPFV RH C1 2x70
Product ref. 10228979
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 2
- Conductor cross-section: 70 mm²
U-1000 ARGPFV RH C1 2x95
Product ref.
- Packaging: Cut to length (m)
- Conductor material: Aluminum
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 2
- Conductor cross-section: 95 mm²
U 1000 ARGPFV RH C1 2x120
Product ref. 10136646
- Packaging: Cut to length (m)
- Conductor material: Aluminum
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 2
- Conductor cross-section: 120 mm²
U-1000 RGPFV RH C1 2x120
Product ref.
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 2
- Conductor cross-section: 120 mm²
U 1000 ARGPFV RH C1 2x150
Product ref. 10136528
- Packaging: Cut to length (m)
- Conductor material: Aluminum
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 2
- Conductor cross-section: 150 mm²
U-1000 RGPFV RH C1 2x150
Product ref.
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 2
- Conductor cross-section: 150 mm²
U-1000 ARGPFV-RH C1 2x185
Product ref.
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 2
- Conductor cross-section: 185 mm²
U-1000 ARGPFV RH C1 2x185
Product ref.
- Conductor material: Aluminum
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 2
- Conductor cross-section: 185 mm²
U-1000 ARGPFV-RH C1 2x240
Product ref.
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 2
- Conductor cross-section: 240 mm²
U-1000 ARGPFV RH C1 2x240
Product ref.
- Conductor material: Aluminum
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 2
- Conductor cross-section: 240 mm²
U 1000 RGPFV RH C1 3x1.5
Product ref. 10091295 - Country ref. 01084800
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Solid class 1
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 1.5 mm²
U-1000 RGPFV-RH C1 3G1,5
Product ref. 10091294
- Conductor material: Copper
- Conductor flexibility: Solid class 1
- With Green/Yellow core: Yes
- Number of cores: 3
- Conductor cross-section: 1.5 mm²
U 1000 RGPFV RH C1 3G2.5
Product ref. 10091304 - Country ref. 01084794
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Solid class 1
- With Green/Yellow core: Yes
- Number of cores: 3
- Conductor cross-section: 2.5 mm²
U 1000 RGPFV RH C1 3x2.5
Product ref. 10091305 - Country ref. 01096932
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Solid class 1
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 2.5 mm²
U 1000 RGPFV RH C1 3G4
Product ref. 10091314 - Country ref. 01084785
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Solid class 1
- With Green/Yellow core: Yes
- Number of cores: 3
- Conductor cross-section: 4 mm²
U 1000 RGPFV RH C1 3x4
Product ref. 10091315 - Country ref. 01103014
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Solid class 1
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 4 mm²
U 1000 RGPFV RH C1 3G6
Product ref. 10091319 - Country ref. 01084786
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: Yes
- Number of cores: 3
- Conductor cross-section: 6 mm²
U-1000 RGPFV RH C1 3x6
Product ref. 10091320 - Country ref. 01084786
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 6 mm²
U 1000 RGPFV RH C1 3G10
Product ref. 10091325 - Country ref. 01096682
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: Yes
- Number of cores: 3
- Conductor cross-section: 10 mm²
U-1000 RGPFV RH C1 3x10
Product ref. 10091326
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 10 mm²
U 1000 RGPFV RH C1 3G16
Product ref. 10091329 - Country ref. 01096683
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: Yes
- Number of cores: 3
- Conductor cross-section: 16 mm²
U 1000 RGPFV RH C1 3x16
Product ref. 10091330 - Country ref. 01095971
- Packaging: Drum (1000m)
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 16 mm²
U 1000 RGPFV RH C1 3x25
Product ref. 10091333 - Country ref. 01084781
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 25 mm²
U 1000 RGPFV RH C1 3G25
Product ref. 10092995 - Country ref. 01248695
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: Yes
- Number of cores: 3
- Conductor cross-section: 25 mm²
U 1000 RGPFV RH C1 3x35
Product ref. 10091336
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 35 mm²
U-1000 ARGPFV RH C1 3x35
Product ref. - Country ref. 10091336
- Packaging: Cut to length (m)
- Conductor material: Aluminum
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 35 mm²
U 1000 RGPFV RH C1 3x50
Product ref. 10091338
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 50 mm²
U-1000 ARGPFV-RH C1 3x50+35
Product ref.
- Conductor material: Aluminum
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 50 mm²
U-1000 RGPFV RH C1 3x50+35
Product ref.
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 50 mm²
U-1000 ARGPFV RH C1 3x50
Product ref. - Country ref. 10091338
- Packaging: Cut to length (m)
- Conductor material: Aluminum
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 50 mm²
U 1000 RGPFV RH C1 3x70
Product ref. - Country ref. 10091340
- Packaging: Cut to length (m)
- Conductor material: Aluminum
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 70 mm²
U-1000 ARGPFV-RH C1 3x70+35
Product ref.
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 70 mm²
U-1000 ARGPFV-RH C1 3x70+50
Product ref.
- Conductor material: Aluminum
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 70 mm²
U-1000 RGPFV RH C1 3x70+35
Product ref.
- Conductor material: Aluminum
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 70 mm²
U-1000 RGPFV RH C 3x70+50
Product ref.
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 70 mm²
U-1000 RGPFV RH C1 3x70
Product ref. 10091340
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 70 mm²
U-1000 RGPFV-RH 3x70G35
Product ref. 10210274
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: Yes
- Number of cores: 3
- Conductor cross-section: 70 mm²
U 1000 RGPFV RH C1 3x95
Product ref. 10091342 - Country ref. 01096687
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 95 mm²
U 1000 ARGPFV RH C1 3x95
Product ref. 10136647
- Packaging: Cut to length (m)
- Conductor material: Aluminum
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 95 mm²
U-1000 ARGPFV-RH C1 3x95+50
Product ref.
- Conductor material: Aluminum
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 95 mm²
U-1000 RGPFV RH C1 3x95+50
Product ref.
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 95 mm²
U 1000 RGPFV RH C1 3x120
Product ref. 10091343 - Country ref. 01096688
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 120 mm²
U 1000 ARGPFV RH C1 3x120
Product ref. 10136529
- Packaging: Cut to length (m)
- Conductor material: Aluminum
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 120 mm²
U-1000 ARGPFV-RH C1 3x120+70
Product ref.
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 120 mm²
U-1000 RGPFV RH C1 3x120+70
Product ref.
- Conductor material: Aluminum
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 120 mm²
U 1000 ARGPFV RH C1 3x150
Product ref. 10136650
- Packaging: Cut to length (m)
- Conductor material: Aluminum
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 150 mm²
U-1000 ARGPFV-RH C1 3x150+70
Product ref.
- Conductor material: Aluminum
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 150 mm²
U-1000 RGPFV RH C1 3x150+70
Product ref.
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 150 mm²
U-1000 RGPFV RH C1 2x150
Product ref.
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 150 mm²
U 1000 ARGPFV RH C1 3x185
Product ref. 10136651
- Packaging: Cut to length (m)
- Conductor material: Aluminum
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 185 mm²
U-1000 ARGPFV-RH C1 3x185+70
Product ref.
- Conductor material: Aluminum
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 185 mm²
U-1000 RGPFV RH C 3X185+70
Product ref.
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 185 mm²
U-1000 RGPFV RH C1 3x185
Product ref. 10086850
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 185 mm²
U 1000 ARGPFV RH C1 3x240
Product ref. 10136652
- Packaging: Cut to length (m)
- Conductor material: Aluminum
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 240 mm²
U-1000 ARGPFV-RH C1 3x240+95
Product ref.
- Conductor material: Aluminum
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 240 mm²
U-1000 RGPFV RH C1 3x240+95
Product ref.
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 240 mm²
U-1000 RGPFV RH C1 3x240
Product ref. 10207894
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 240 mm²
U 1000 RGPFV RH C1 4G1.5
Product ref. 10091296 - Country ref. 01096585
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Solid class 1
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 1.5 mm²
U-1000 RGPFV-RH C1 4x1,5
Product ref. 10091297 - Country ref. 01096631
- Conductor material: Copper
- Conductor flexibility: Solid class 1
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 1.5 mm²
U 1000 RGPFV RH C1 4G2.5
Product ref. 10091306 - Country ref. 01095900
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Solid class 1
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 2.5 mm²
U-1000 RGPFV-RH C1 4x2,5
Product ref. 10091307 - Country ref. 01096970
- Conductor material: Copper
- Conductor flexibility: Solid class 1
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 2.5 mm²
U 1000 RGPFV RH C1 4G4
Product ref. 10091316 - Country ref. 01096679
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Solid class 1
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 4 mm²
U-1000 RGPFV-RH C1 4x4
Product ref. 10091317 - Country ref. 01096954
- Conductor material: Copper
- Conductor flexibility: Solid class 1
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 4 mm²
U 1000 RGPFV RH C1 4G6
Product ref. 10091322 - Country ref. 01096681
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 6 mm²
U 1000 RGPFV RH C1 4x6
Product ref. 10091323 - Country ref. 01329660
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 6 mm²
U 1000 RGPFV RH C1 4G10
Product ref. 10091327 - Country ref. 01095901
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 10 mm²
U-1000 RGPFV RH C1 4x10
Product ref. 10091328 - Country ref. 01096708
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 10 mm²
U 1000 RGPFV RH C1 4G16
Product ref. 10091331 - Country ref. 01095902
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 16 mm²
U 1000 RGPFV RH C1 4x16
Product ref.
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 16 mm²
U 1000 RGPFV RH C1 4G25
Product ref. 10091334 - Country ref. 01095903
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 25 mm²
U 1000 RGPFV RH C1 4x25
Product ref. 10091335 - Country ref. 01096587
- Packaging: Drum (1000m)
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 25 mm²
U 1000 RGPFV RH C1 4x35
Product ref. 10091337 - Country ref. 01096685
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 35 mm²
U 1000 RGPFV RH C1 4x50
Product ref. 10091339
- Packaging: Drum (1000m)
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 50 mm²
U-1000 ARGPFV RH C1 4x50
Product ref. - Country ref. 10091338
- Packaging: Drum (1000m)
- Conductor material: Aluminum
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 50 mm²
U-1000 RGPFV RH C1 4G50
Product ref. 10232214
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 50 mm²
U-1000 ARGPFV-RH C1 4x70
Product ref.
- Conductor material: Aluminum
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 70 mm²
U-1000 RGPFV RH C1 4x70
Product ref.
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 70 mm²
U 1000 RGPFV RH C1 4x95
Product ref. 10095524
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 95 mm²
U 1000 ARGPFV RH C1 4x95
Product ref. 10120435
- Packaging: Cut to length (m)
- Conductor material: Aluminum
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 95 mm²
U-1000 RGPFV RH C1 4G95
Product ref.
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 95 mm²
U 1000 RGPFV RH C1 4x120
Product ref. 10199065
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 120 mm²
U-1000 ARGPFV RH C1 4x120
Product ref.
- Packaging: Cut to length (m)
- Conductor material: Aluminum
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 120 mm²
U 1000 RGPFV RH C1 4x150
Product ref.
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 150 mm²
U-1000 ARGPFV RH C1 4x150
Product ref.
- Packaging: Cut to length (m)
- Conductor material: Aluminum
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 150 mm²
U-1000 RGPFV RH C1 4G150
Product ref.
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 150 mm²
U 1000 RGPFV RH C1 5G1.5
Product ref. 10091298 - Country ref. 01096572
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Solid class 1
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 1.5 mm²
U 1000 RGPFV RH C1 5G2.5
Product ref. 10091308 - Country ref. 01096668
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Solid class 1
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 2.5 mm²
U 1000 RGPFV RH C1 5G4
Product ref. 10091318 - Country ref. 01096680
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Solid class 1
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 4 mm²
U 1000 RGPFV RH C1 5G6
Product ref. 10091324 - Country ref. 01095967
- Packaging: Drum (1000m)
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 6 mm²
U-1000 RGPFV-RH C1 5G10
Product ref.
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 10 mm²
U 1000 RGPFV RH C1 5G16
Product ref. 10091332 - Country ref. 01084787
- Packaging: Drum (500m)
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 16 mm²
U-1000 RGPFV-RH C1 5G25
Product ref.
- Conductor material: Copper
- Conductor flexibility: Stranded class 2
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 25 mm²
U 1000 RGPFV RH C1 7x1.5
Product ref. 10091299 - Country ref. 01248584
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Solid class 1
- With Green/Yellow core: No
- Number of cores: 7
- Conductor cross-section: 1.5 mm²
U-1000 RGPFV RH C1 7G1.5
Product ref. 10210737
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Solid class 1
- With Green/Yellow core: Yes
- Number of cores: 7
- Conductor cross-section: 1.5 mm²
U 1000 RGPFV RH C1 7x2.5
Product ref. 10091309 - Country ref. 01248585
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Solid class 1
- With Green/Yellow core: No
- Number of cores: 7
- Conductor cross-section: 2.5 mm²
U-1000 RGPFV-RH C1 8G1.5
Product ref.
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Solid class 1
- With Green/Yellow core: Yes
- Number of cores: 8
- Conductor cross-section: 1.5 mm²
U 1000 RGPFV RH C1 12x1.5
Product ref. 10091300 - Country ref. 01248580
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Solid class 1
- With Green/Yellow core: No
- Number of cores: 12
- Conductor cross-section: 1.5 mm²
U 1000 RGPFV RH C1 12x2.5
Product ref. 10091310 - Country ref. 01248586
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Solid class 1
- With Green/Yellow core: No
- Number of cores: 12
- Conductor cross-section: 2.5 mm²
U 1000 RGPFV RH C1 19x1.5
Product ref. 10091301 - Country ref. 01248581
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Solid class 1
- With Green/Yellow core: No
- Number of cores: 19
- Conductor cross-section: 1.5 mm²
U 1000 RGPFV RH C1 19x2.5
Product ref. 10091311 - Country ref. 01248587
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Solid class 1
- With Green/Yellow core: No
- Number of cores: 19
- Conductor cross-section: 2.5 mm²
U-1000 RGPFV-RH 19G2.5
Product ref. 10103418
- Conductor material: Copper
- Conductor flexibility: Solid class 1
- With Green/Yellow core: Yes
- Number of cores: 19
- Conductor cross-section: 2.5 mm²
U-1000 RGPFV-RH C1 24x1,5
Product ref.
- Conductor material: Copper
- Conductor flexibility: Solid class 1
- With Green/Yellow core: No
- Number of cores: 24
- Conductor cross-section: 1.5 mm²
U-1000 RGPFV-RH C1 24x2,5
Product ref.
- Conductor material: Copper
- Conductor flexibility: Solid class 1
- With Green/Yellow core: No
- Number of cores: 24
- Conductor cross-section: 2.5 mm²
U 1000 RGPFV RH C1 37x1.5
Product ref. 10091302 - Country ref. 01248583
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Solid class 1
- With Green/Yellow core: No
- Number of cores: 37
- Conductor cross-section: 1.5 mm²
U 1000 RGPFV RH C1 37x2.5
Product ref. 10091313 - Country ref. 01248589
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Solid class 1
- With Green/Yellow core: No
- Number of cores: 37
- Conductor cross-section: 2.5 mm²
U-1000 RGPFV-RH 37G2.5
Product ref. 10102787
- Packaging: Cut to length (m)
- Conductor material: Copper
- Conductor flexibility: Solid class 1
- With Green/Yellow core: Yes
- Number of cores: 37
- Conductor cross-section: 2.5 mm²
Description
Description
Standards
-
ProductIEC 60228; XP C 32-111
-
TestIEC 60332-3-24; NF C32-070/C1
Applications
These power and control cables are used for electricity supply in low voltage installation system. They are well adapted to underground use in industrial applications, in moist areas, where hydrocarbon and mechanical protections are needed. The lead sheath brings an enhanced resistance to aromatics hydrocarbons.
Design
Conductor:
- Solid plain copper: 1.5 to 4 mm²
- Stranded plain copper or aluminium: 6 to 630 mm²
Insulation:
- Cross-linked polyethylene (XLPE)
Bedding (optional)
Inner sheath:
- Polyvinyl chloride (PVC) Colour: black
Lead cover
Armour:
- Paraffin-waxed crepe paper
- Double steel tape (STA)
Outer sheath:
- Polyvinyl chloride (PVC). Colour: black.
Core identification
2 to 5 cores: according to HD 308 S2
> 5 cores: printed numbers
> 5G cores: printed numbers + green/yellow core
Marking
U-1000 (A)RGPFV - RH Nber of cores and cross-section NF-USE 279 NFC 32070 C1 + meter marking
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Lead Sheath
Yes
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
0,6/1 kV
Mechanical characteristics
Mechanical characteristics
Mechanical resistance to impacts
Good
Usage characteristics
Usage characteristics
Fire retardant
NF C 32-070 C1, IEC 60332-3-24 (cat.C)
Chemical resistance
Aliphatic and aromatic hydrocarbons resistant
Max. conductor temperature in service
90 °C
Operating temperature, range
-20 ... 60 °C
Resources
Resources
Documentation
Core indentification HD308 S2
pdf — 498.5 kB
Theoretical electrical characteristics
pdf — 28.6 kB
Selling & delivery Information
Other references available on request.
According to NF C 32111, these cables can be manufactured form U 1000 R2V. In such case the diameters and the weights will be a little bit different from the above ones.
Bending radius: 8x outer diameter
To be doubled during laying operations
