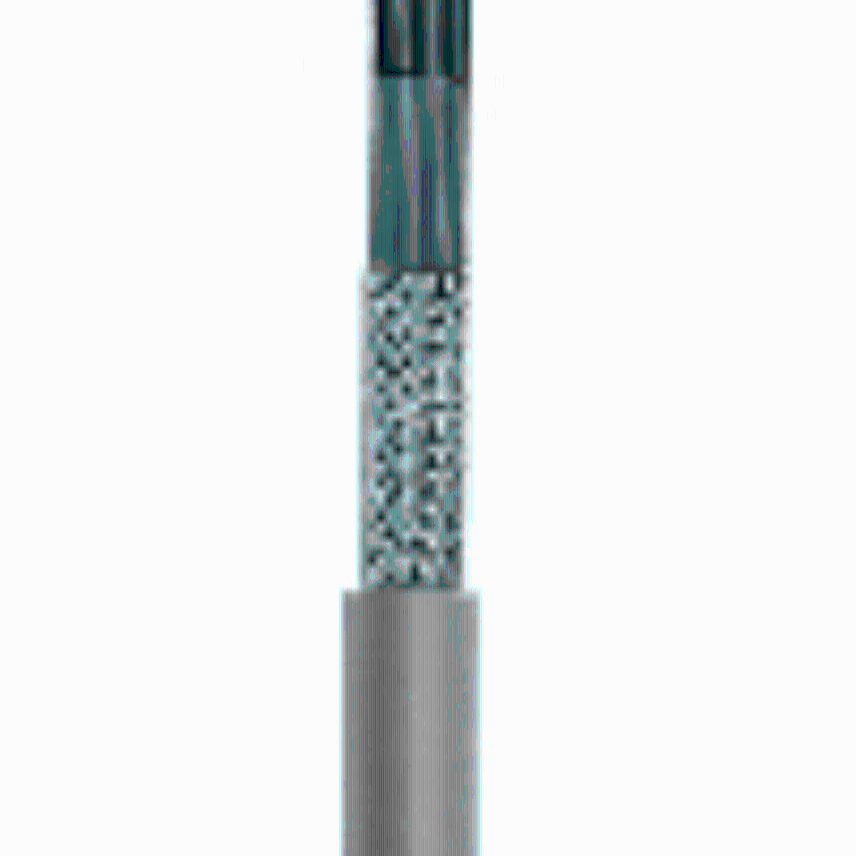

GVCSTV LSLH - C1

Applications

These cables are used for flexible connections requiring an anti-inductive screen (EMC). GVCSTV LSLH C1 cables are fire retardant in compliance with the requirements of the NFC 32070 C1 standard.

Design

Conductor:
- Stranded tinned copper class 5
- For section ≥ 35 mm²: plain copper class 5
Insulation:
- Thermoplastic
Screen:
- Polyester tape/tinned copper braid (covering rate > 60 %)
Outer sheath:
- Polyvinyl chloride (PVC) Low smoke, low halogen
- Colour: grey

Core identification

Black core printed with white number
For cables with green/yellow core
3 G: blue - brown - green/yellow
4 G: brown - black - grey - green/yellow
5 G: blue - brown - black - grey - green/yellow
> 5G: black core printed with white number + green/yellow

Marking

NEXANS GVCSTV LSLH 1000V nber of cores & cross-section NFC 32070 C1 + meter marking

Low smoke: IEC 61034-2 Transmittance > 40 %

Low halogen: < 9 % IEC 60754-1
